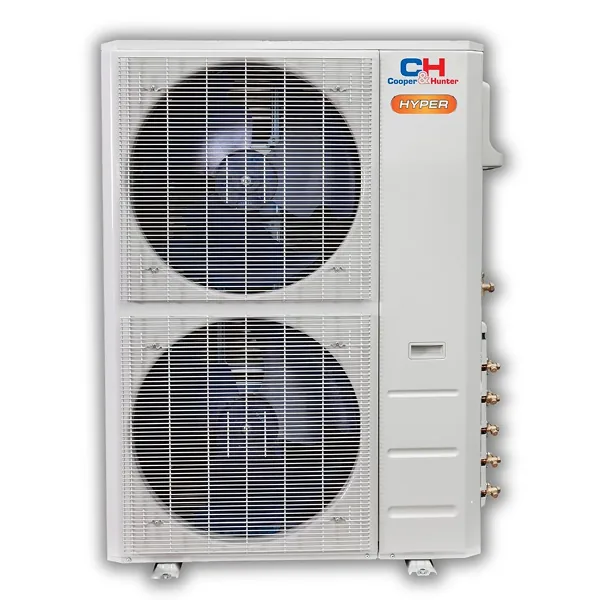

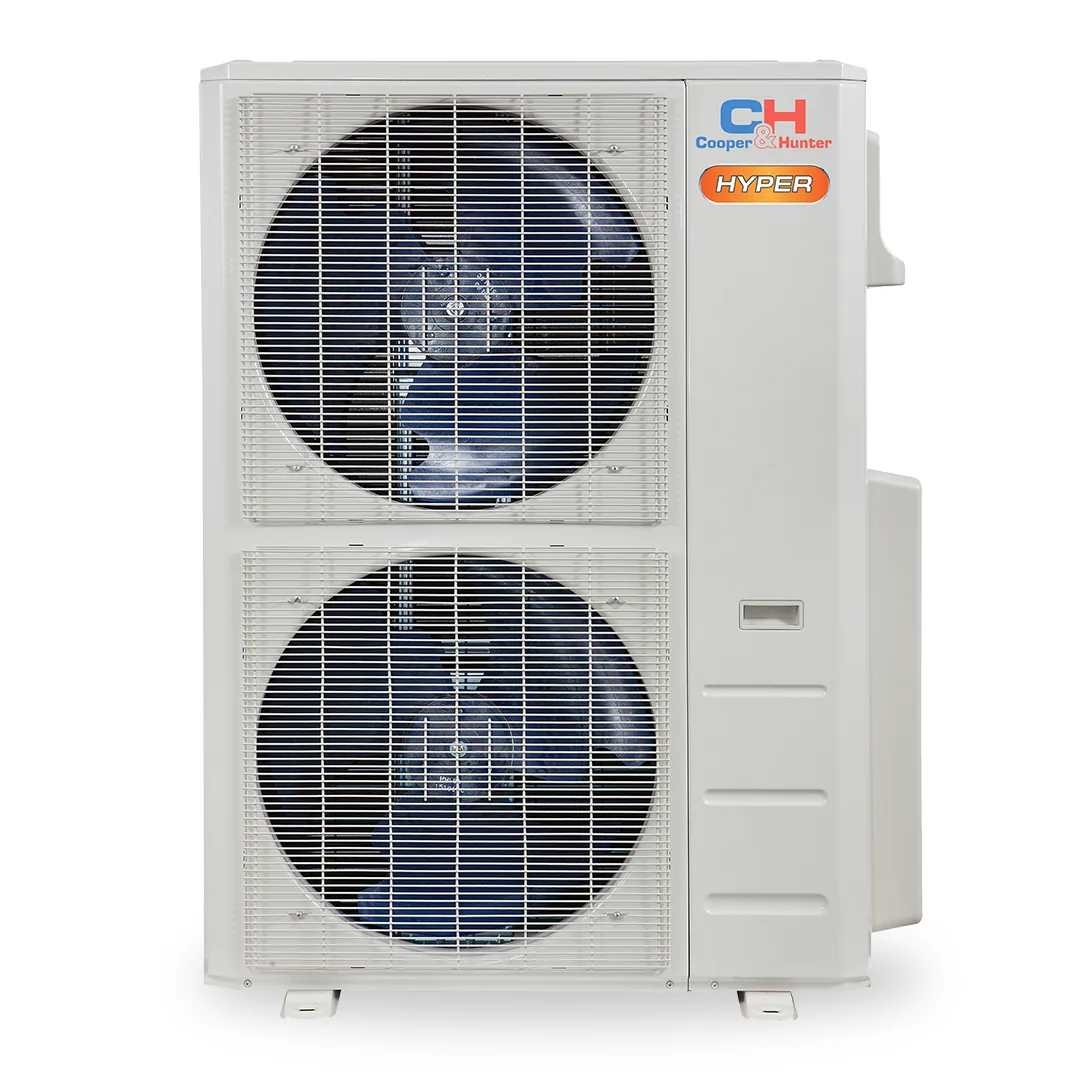

Cooper & Hunter | Hyper Outdoor Series
Model: CH-RHP48LCU-230VO
BTU
48,000
SEER2
18.5
Voltage
208-230V, 1Ph, 60Hz V, Ph, Hz
Refrigerant
R454B

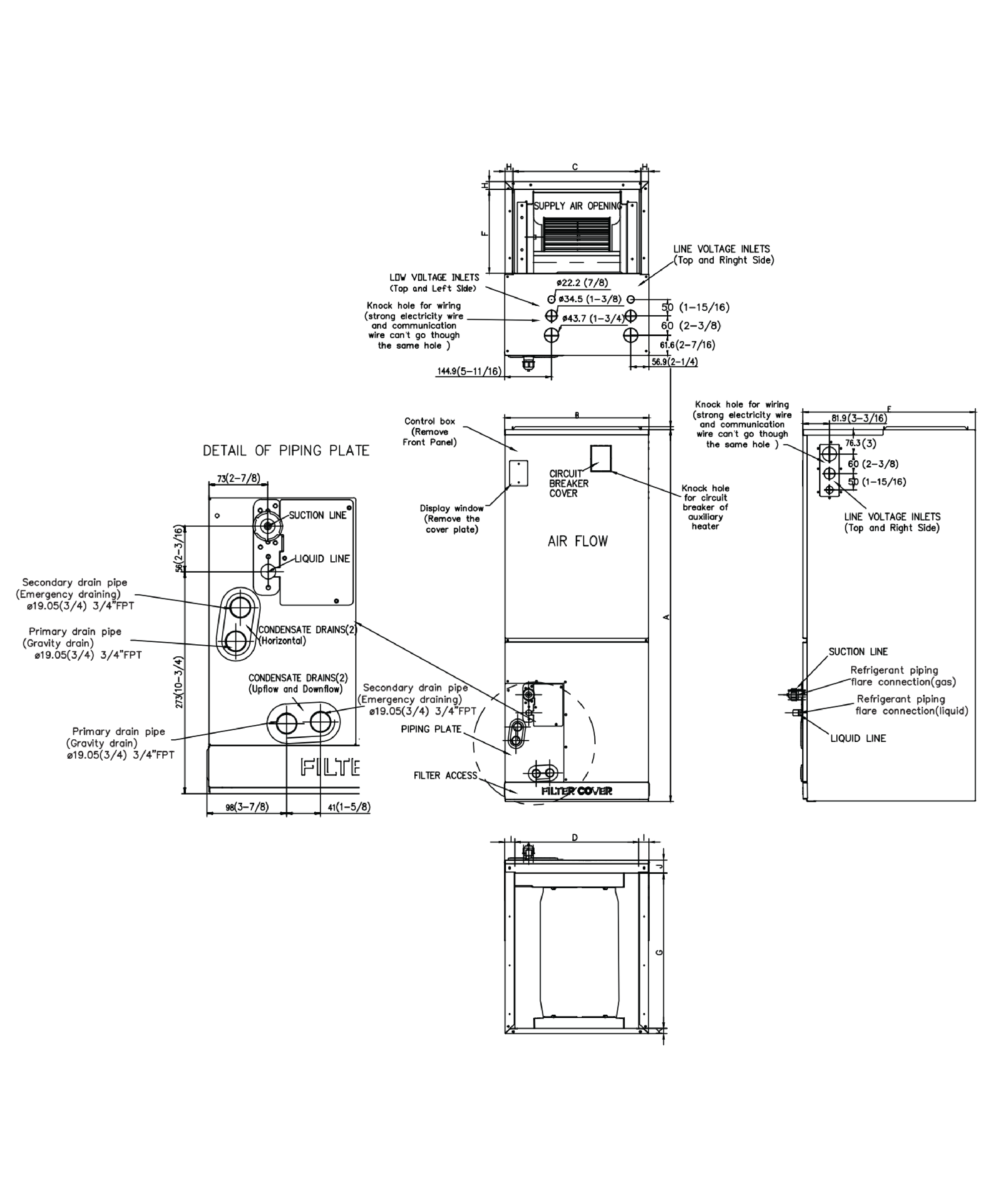

Indoor: CH-RSH48LCFC
Cooper&Hunter's 48K BTU, 230V Hyper Single-Zone Outdoor Unit is designed to provide powerful and efficient heating and cooling solutions for large residential and light commercial spaces. Incorporating advanced inverter technology, the system intelligently adjusts compressor activity to meet precise climate control needs. This ensures stable indoor temperatures, reduced energy usage, and optimized system efficiency for consistent and cost-effective performance. A standout feature of this Hyper model is its robust Hyper Heating capability, which delivers reliable warmth even in temperatures as low as -22°F. To further enhance its eco-friendly design, the unit employs R454B refrigerant, a modern refrigerant with a lower Global Warming Potential (GWP), demonstrating Cooper&Hunter's commitment to sustainability and environmental innovation. Constructed with a focus on resilience, the 48K BTU unit is built to perform dependably in challenging weather conditions. Featuring a SEER2 rating of up to 18.5, it offers excellent energy savings while maintaining quiet operation. This versatile system seamlessly blends cutting-edge features, durability, and eco-consciousness, making it a reliable choice for year-round climate control in demanding environments.
| Indoor Model | CH-RSH48LCFC |
| Power supply | 208-230V, 1Ph, 60Hz V, Ph, Hz |
| Communication wiring | AWG 14-3 |
| Cooling Capacity | 48,000 (6,700~53,500) Btu/h |
| Input | 85 w |
| Rated current | 24.2 (6.2~25.9) A |
| Heating at 47 °F Capacity | 52,000 (18,800~58,700) Btu/h |
| COP | 2.86 W/W |
| HSPF4/HSPF2-4 | 10.1 |
| HSPF5/HSPF2-5 | 8 |
| Indoor fan motor | 2 Qty |
| Indoor air flow (Turbo/Hi/Med/Lo) (No duct) | 1,353.8 / 1,236.1 / 1,083 / 800.5 CFM |
| ESP (range) | / ln.wg. |
| Indoor noise level (Hi/Med/Lo) | 53/48.5/39 dB(A) |
| Dehumidification | 13.36 L/H |
| Indoor unit Dimensions (WxDxH) | 64.96 x 26.57 x 9.25 inch |
| Packing (WxDxH) | 45.08 x 19.68 x 42.52 inch |
| Net/Gross weight | 206.57/237.44 inch |
| Drainage water pipe diameter | 1" inch |
| Refrigerant piping (Liquid side/Gas side) | 3/8"/3/4" inch |
| Design pressure | 550/340 PSIG |
| Controller | remote controller |
| Room temperature Cooling | 60~90 F |
| Heating | -22~75 F |
| Outdoor Model | CH-RHP48LCU-230VO |
| Min. circuit ampacity | 44 A |
| Max. fuse | 45 A |
| Compressor Model | EKPQ420D1UMUA |
| Type | TWIN-ROTARY |
| Brand | GMCC |
| Capacity | 40.94 Btu/h |
| Rated current (RLA) | 27 A |
| Refrigerant oil | VG75 49.4 oz |
| Outdoor fan motor Qty | 2 |
| RLA | 1.2 A |
| Speed | 850/750/650 r/min |
| Outdoor air flow (Max) | 4,237.9 CFM |
| Outdoor noise level (Max) | 64.5 dB(A) |
| Throttle type | EXV+Throttle valve |
| Outdoor unit Dimensions (WxDxH) | 38.58 x 16.34 x 38.39 inch |
| Refrigerant Type | R454B |
| Precharge | 25 ft |
| Additional charge for 1/4 inch liquid pipe | / oz |
| Additional charge for 3/8 inch liquid pipe | 0.32 oz |
| Refrigerant piping Liquid side/Gas side | 3/8"/3/4" inch |
| Max. pipe length | 246 ft |
| Max. difference in level | 98.4 ft |
| Ambient temperature Cooling | -22 ~ 122 F |
