Cooper & Hunter | Ceiling Cassette Series
Model: CH-RSH48LCCT
BTU
48,000
SEER2
19
Voltage
208-230V, 1Ph, 60Hz V, Ph, Hz
Refrigerant
R454B
Outdoor: CH-R48LCU-230VO
The 48K Btu Ceiling Cassette PRO by Cooper&Hunter brings unmatched comfort to expansive spaces, combining cutting-edge R454B refrigerant technology with modern, sustainable design. Engineered for efficiency and power, this system is built to cater to the demands of large-scale applications. Boasting an impressive SEER2 rating of 18.0, this high-capacity unit delivers exceptional energy savings while maintaining optimal performance. The activated carbon filter ensures cleaner air, while the GoldFin Anti-Corrosive Coating enhances the unit's durability for long-lasting reliability. The Anti Cold Air feature offers consistent warmth during heating, eliminating uncomfortable drafts. With its innovative 360° Air Flow Panel and Omni-Directional Airflow, the Ceiling Cassette PRO achieves uniform air circulation, ensuring every corner of the room is evenly covered. Comprehensive safety systems, including Refrigerant Leakage Detection, a Humidity Sensor, and a Self Diagnosis Function, provide peace of mind and consistent functionality. The built-in pump, featuring a lift capability of up to 20.9 inches, efficiently removes condensate water with quiet operation. The unit's TU1 Copper Tubes maximize heat transfer efficiency and provide exceptional durability, while the Fresh Air Intake feature promotes healthier indoor air quality. A compact electric box design simplifies installation, making setup more convenient for professionals. Seamless control options include the Built-in Smart Kit, which connects to the C&H App, along with the Remote Control and Wall Thermostat. Designed to deliver powerful heating and cooling solutions, the 48K Btu Ceiling Cassette PRO is the pinnacle of performance for large spaces.
| Indoor Model | CH-RSH48LCCT |
| Power supply | 208-230V, 1Ph, 60Hz V, Ph, Hz |
| Communication wiring | AWG 14-2 |
| Cooling Capacity | 48,000 (10,600~50,400) Btu/h |
| Input | 85 W |
| Rated current | 22.1 (6.2~26) A |
| EER/EER2 | 9.5 Btu/w |
| SEER/SEER2 | 19 Btu/w |
| Heating at 47 °F Capacity | 50,000 (19,900~61,700) Btu/h |
| COP | 2.96 W/W |
| HSPF4/HSPF2-4 | 9.9 |
| HSPF5/HSPF2-5 | 7.7 |
| Indoor fan motor | 1 Qty |
| Indoor air flow (Turbo/Hi/Med/Lo) (No duct) | 1,236.1 / 1,124.2 / 1,018.3 / 800.5 CFM |
| ESP (range) | / ln.wg. |
| Indoor noise level (Hi/Med/Lo) | 52.5/50/42.5 dB(A) |
| Dehumidification | 13.26 Pnt/H |

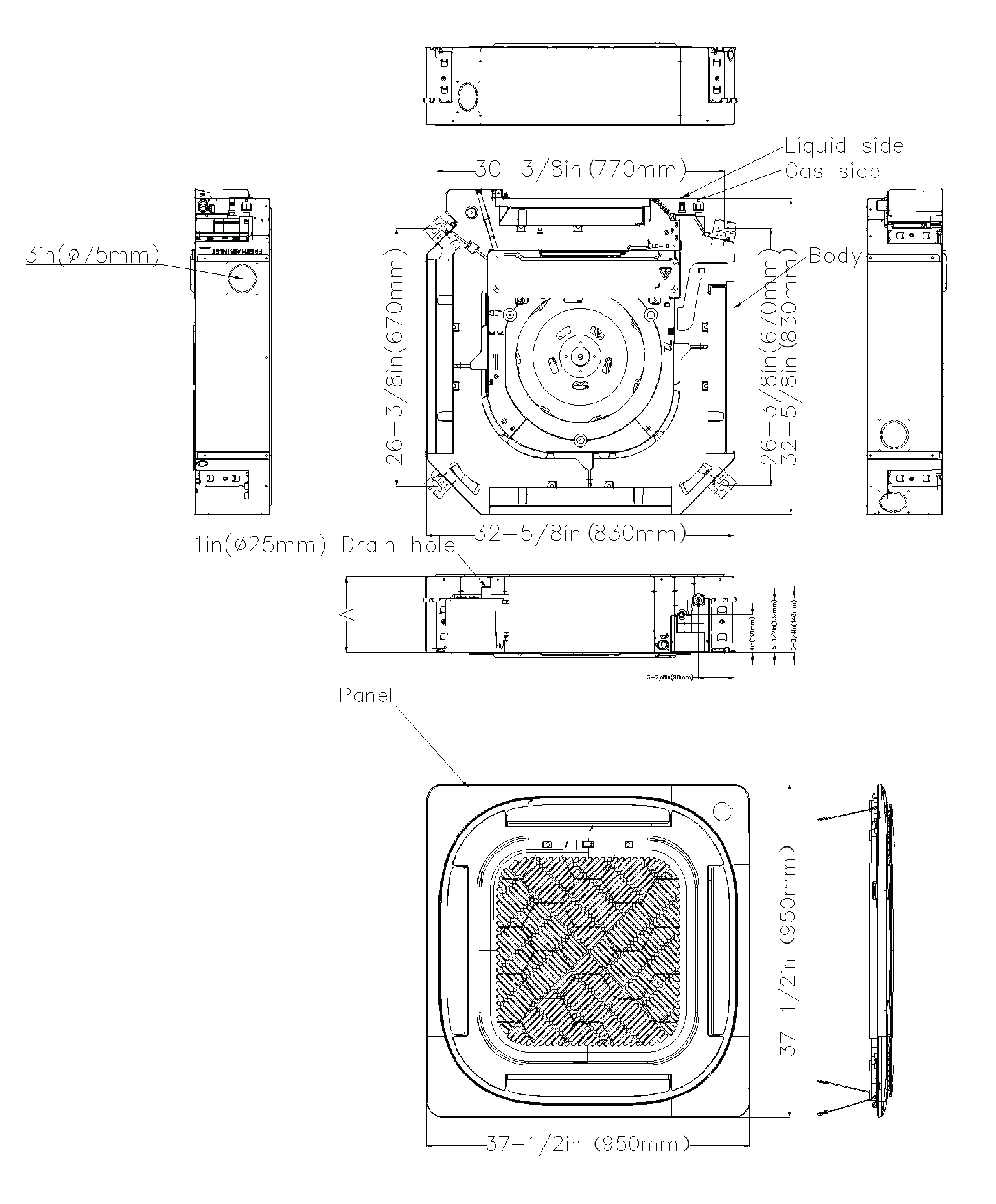

| Indoor unit Dimensions (WxDxH) | 32.68 x 32.68 x 11.30 inch |
| Packing (WxDxH) | 43.11 x 19.49 x 57.48 inch |
| Net/Gross weight | 208.78/239.86 lbs |
| Drainage water pipe diameter | 1" inch |
| Refrigerant piping (Liquid side/Gas side) | 3/8"/3/4" inch |
| Design pressure | 550/340 PSIG |
| Controller | wire controller + remote controller available |
| Room temperature Cooling | 60~90 F |
| Heating | -13~75 F |
| Outdoor Model | CH-R48LCU-230VO |
| Min. circuit ampacity | 39 A |
| Max. fuse | 40 A |
| Compressor Model | KTQ420D1UMU |
| Type | ROTARY |
| Brand | GMCC |
| Capacity | 46,740 Btu/h |
| Rated current (RLA) | 24 A |
| Refrigerant oil | VG74 47.3 oz |
| Outdoor fan motor Qty | 2 |
| RLA | 1.2 A |
| Speed | 850/750/650 r/min |
| Outdoor air flow (Max) | 4,237,9 CFM |
| Outdoor noise level (Max) | 62.5 dB(A) |
| Throttle type | EXV+Throttle valve |
| Outdoor unit Dimensions (WxDxH) | 37.48 x 16.34 x 52.48 inch |
| Refrigerant Type | R454B |
| Precharge | 25 ft |
| Additional charge for 1/4 inch liquid pipe | / oz |
| Additional charge for 3/8 inch liquid pipe | 0.32 oz |
| Refrigerant piping Liquid side/Gas side | 3/8"/3/4" inch |
| Max. pipe length | 246 ft |
| Max. difference in level | 98.4 ft |
| Ambient temperature Cooling | -13 ~ 122 F |
