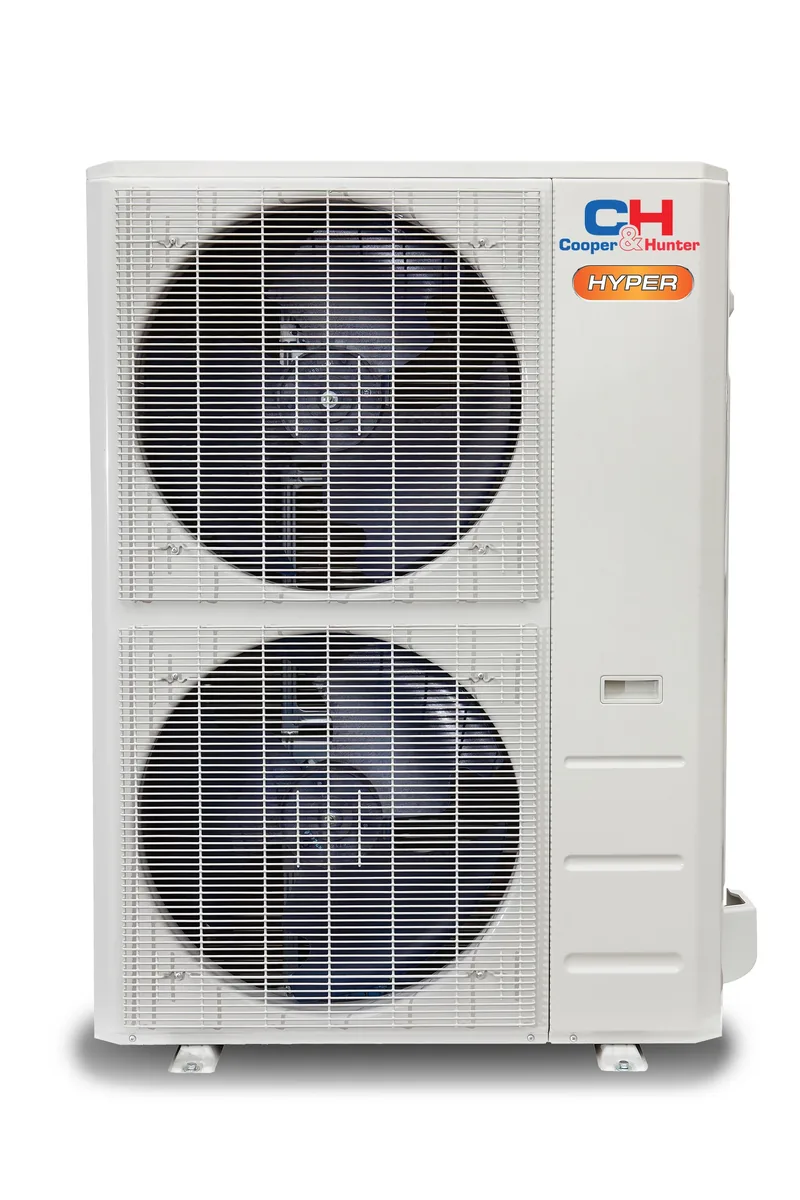

Cooper & Hunter | Hyper Outdoor Series
Model: CH-RHP36LCU-230VO
BTU
36,400
SEER2
20
Voltage
208-230V, 1Ph, 60Hz V, Ph, Hz
Refrigerant
R454B
Indoor: CH-RSH36LCFC
Cooper&Hunter's 36K BTU, 230V Hyper Single-Zone Outdoor Unit combines robust performance with advanced energy efficiency, making it an outstanding solution for large residential and light commercial environments. Utilizing innovative inverter technology, this unit continuously fine-tunes its compressor speed to meet specific heating or cooling demands, delivering steady temperature control while significantly reducing energy usage and costs. What elevates this Hyper unit is its powerful Hyper Heating feature, designed to provide reliable warmth even in extreme conditions, functioning effectively at temperatures as low as -22°F. The unit also incorporates R454B refrigerant, an eco-friendly alternative with a lower Global Warming Potential (GWP), emphasizing Cooper&Hunter's commitment to environmentally sustainable practices. Built with durability and dependability in mind, this 36K BTU model is constructed to thrive in demanding conditions, ensuring consistent operation year-round. With a SEER2 rating of up to 21.2, it offers excellent energy savings, while its quiet operation guarantees comfort without disruption. This unit seamlessly combines innovation, sustainability, and resilience to meet diverse climate control needs.
| Indoor Model | CH-RSH36LCFC |
| Power supply | 208-230V, 1Ph, 60Hz V, Ph, Hz |
| Communication wiring | AWG 14-3 |
| Cooling Capacity | 36,400 (6,100~38,300) Btu/h |
| Input | 250 w |
| Rated current | 15.1 (3.7~17.9) A |
| Heating at 47 °F Capacity | 38,000 (11,100~45,400) Btu/h |
| COP | 3.29 W/W |
| HSPF4/HSPF2-4 | 10.8 |
| HSPF5/HSPF2-5 | 8.9 |
| Indoor fan motor | 2 Qty |
| Indoor air flow (Turbo/Hi/Med/Lo) (No duct) | 1,224.3 / 1,088.9 / 988.8 / 765.2 CFM |
| ESP (range) | / ln.wg. |
| Indoor noise level (Hi/Med/Lo) | 51/45.5/39 dB(A) |
| Dehumidification | 6.55 L/H |
| Indoor unit Dimensions (WxDxH) | 64.96 x 26.57 x 9.25 inch |
| Packing (WxDxH) | 67.91 x 29.72 x 12.52 inch |
| Net/Gross weight | 88.85/104.94 lbs |
| Drainage water pipe diameter | 1" inch |
| Refrigerant piping (Liquid side/Gas side) | 3/8"/3/4" inch |
| Design pressure | 550/340 PSIG |
| Controller | remote controller |
| Room temperature Cooling | 60~90 F |
| Heating | -22~75 F |
| Outdoor Model | CH-RHP36LCU-230VO |
| Min. circuit ampacity | 38 A |
| Max. fuse | 40 A |
| Compressor Model | EKPQ420D1UMUA |
| Type | TWIN-ROTARY |
| Brand | GMCC |
| Capacity | 40.94 Btu/h |
| Rated current (RLA) | 24.5 A |
| Refrigerant oil | VG75 49.4 oz |
| Outdoor fan motor Qty | 1 |
| RLA | 2.1 A |
| Speed | 750/650/550 r/min |
| Outdoor air flow (Max) | 3,001.9 CFM |
| Outdoor noise level (Max) | 65 dB(A) |
| Throttle type | EXV+Throttle valve |
| Refrigerant Type | R454B |
| Precharge | 25 ft |
| Additional charge for 1/4 inch liquid pipe | / oz |
| Additional charge for 3/8 inch liquid pipe | 0.32 oz |
| Refrigerant piping Liquid side/Gas side | 3/8"/3/4" inch |
| Max. pipe length | 246 ft |
| Max. difference in level | 98.4 ft |
| Ambient temperature Cooling | -22 ~ 122 F |
