Cooper & Hunter | Hyper Outdoor Series
Model: CH-RHP06F9-230VO
BTU
6,000
SEER2
25.5
Voltage
208-230V, 1Ph, 60Hz V, Ph, Hz
Refrigerant
R454B
Indoor: CH-PRO06MASTWM-230VI

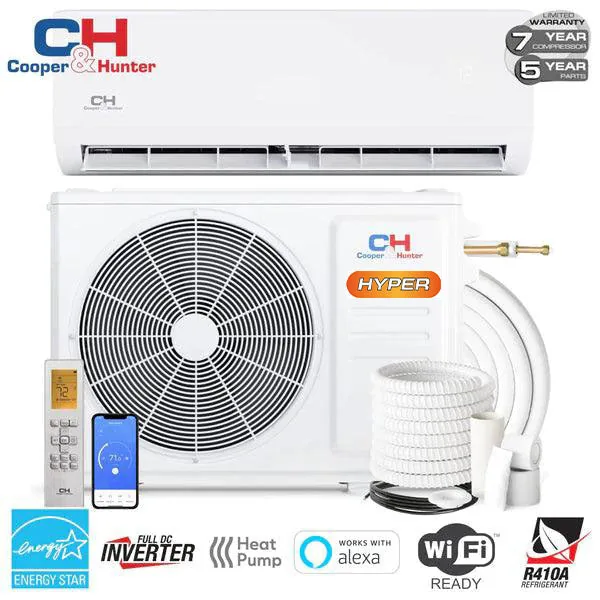

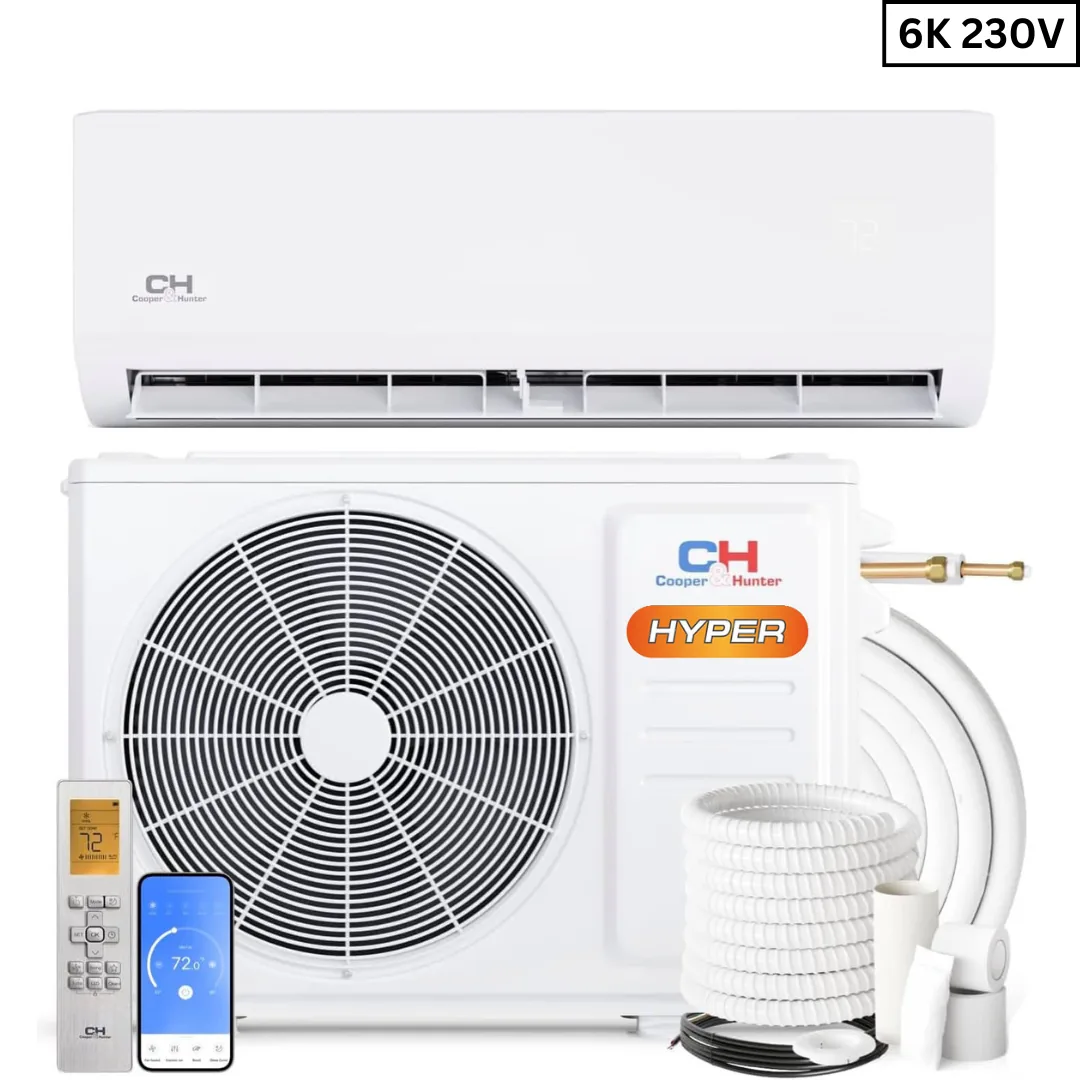

Cooper & Hunter Single-Zone R454B, 6,000 BTU 230V Olivia Hyper Series Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 0.5 Ton 25.3 SEER2 with Wi-Fi, Optional Installation Kit - CH-R06MOLVWM-230VI + CH-RHP06F9-230VO
Summary
The Olivia Series Single Zone Ductless Mini Split Systems we offer have options of 16ft, 25ft, and 50ft kits. Auto-swing horizontal louvers maintain even airflow throughout the room, and the Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings, granting them a high-efficiency rating of up to 26.4 SEER2. This system will both heat and cool your home or office effectively down to -13°F for Standard units, and even down to -22°F for Hyper units. The units can be controlled with the Cooper & Hunter remote control, or via a smart device when used with the optional Wi-Fi kit and Cooper & Hunter Remote app. Other notable features include Follow Me Mode, Sleep Mode, Timer options, and 46°F Freeze Protection. The Olivia indoor wall-mounted series is an incredible option as a single or multi-zone mini split unit!
Included in Your Order:
Cooper & Hunter Single Zone Ductless Mini Split System (6,000 BTU Inverter with Heat Pump)
Outdoor Unit: 6,000 BTU (1pc) – Model: CH-RHP06F9-230VO
Indoor Unit: 6,000 BTU (1pc with remote) – Model: CH-R06MOLVWM-230VI
Wi-Fi Adapter
Optional Installation Kit (16ft, 25ft, or 50ft options available) Must be selected above.
Wireless Remote Control
Installation Manual
User's Manual
Manufacturer Warranty
Key Features:
Auto-Swing for horizontal louvers
Genius Core ultra-low compressor speed of 12Hz
46° Freeze Protection
Turbo Mode
Self-Clean Function
Eco Mode
Follow Me Mode
Remote Control included
Smart Kit ready with downloadable C&H remote app
Important
All units must be installed by a licensed HVAC professional
| Indoor Model | CH-PRO06MASTWM-230VI |
| Power supply | 208-230V, 1Ph, 60Hz V, Ph, Hz |
| Communication wiring | AWG 14-4 |
| Cooling Capacity | 6,000 (2,300~12,600) Btu/h |
| Input | 34 W |
| Rated current | 4 (1.3~4.8) A |
| EER/EER2 | 18.0 Btu/w |
| SEER/SEER2 | 25.5 Btu/w |
| Heating at 47 °F Capacity | 7,000 (3,000~11,000) Btu/h |
| COP | 4.2 W/W |
| HSPF4/HSPF2-4 | 14.8 |
| HSPF5/HSPF2-5 | 11.5 |
| Indoor fan motor | 1 Qty |
| Indoor air flow (Turbo/Hi/Med/Lo) (No duct) | 382.6 / 323.7 / 229.6 / 176.6 CFM |
| Indoor noise level (Hi/Med/Lo) | 36.5/32.5/22 dB(A) |
| Dehumidification | 0.63 Pnt/H |
| Indoor unit Dimensions (WxDxH) | 33.74 x 9.09 x 11.81 inch |
| Packing (WxDxH) | 34.92 x 13.27 x 24.02 inch |
| Net/Gross weight | 62.17/67.68 inch |
| Drainage water pipe diameter | 5/8" inch |
| Refrigerant piping (Liquid side/Gas side) | 1/4"/3/8" inch |
| Design pressure | 550/340 PSIG |
| Controller | wire controller + remote controller available |
| Room temperature Cooling | 60~90 F |
| Heating | -22~75 F |
| Outdoor Model | CH-RHP06F9-230VO |
| Min. circuit ampacity | 12 A |
| Max. fuse | 15 A |
| Compressor Model | KSK103D33UEZ3 |
| Type | ROTARY |
| Brand | GMCC |
| Capacity | 11,100 Btu/h |
| Rated current (RLA) | 7.3 A |
| Refrigerant oil | VG74 10.5 oz |
| Outdoor fan motor Qty | 1 |
| RLA | 0.6 A |
| Speed | 800/700/600 r/min |
| Outdoor air flow (Max) | 1,235.3 CFM |
| Outdoor noise level (Max) | 53 dB(A) |
| Throttle type | EXV |

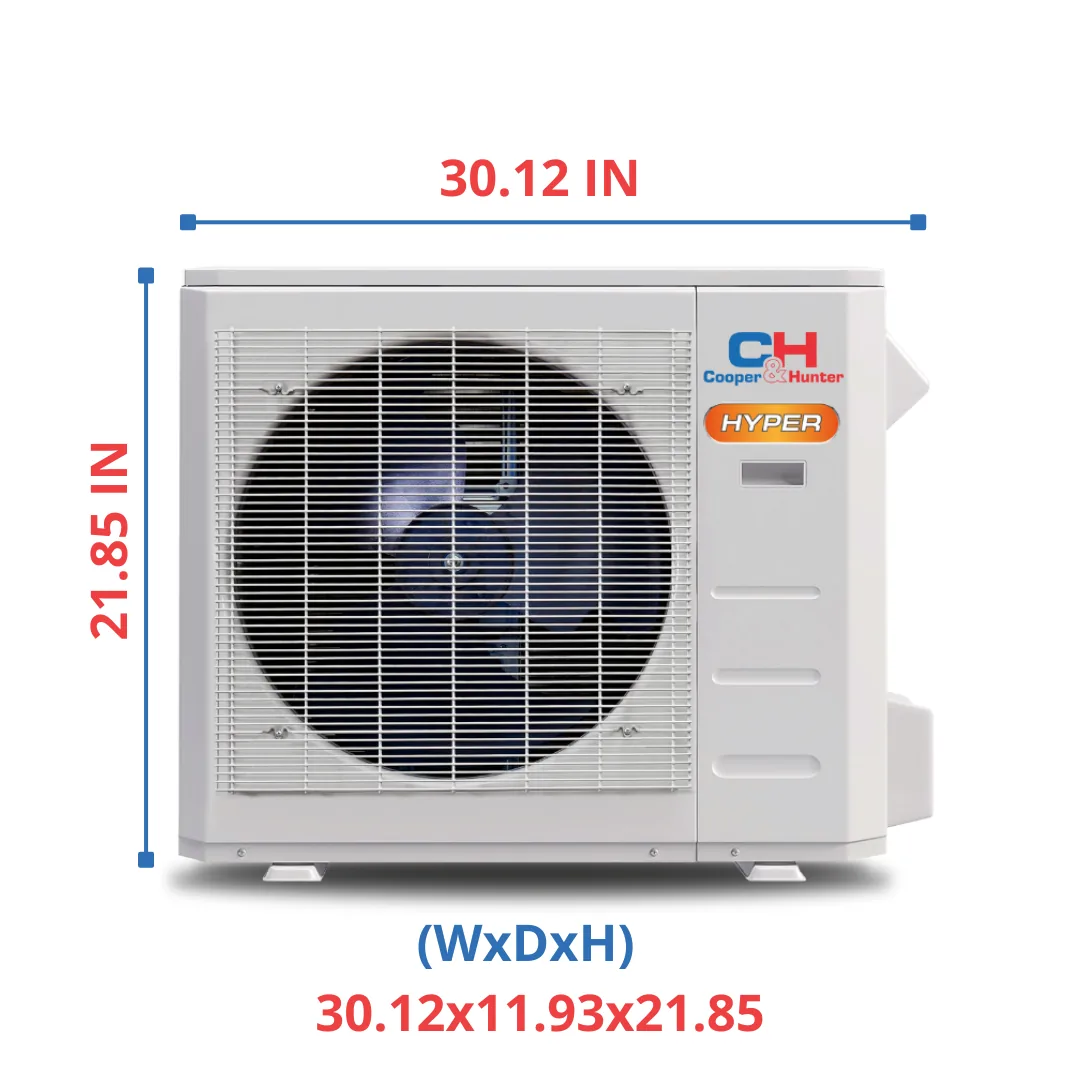

| Outdoor unit Dimensions (WxDxH) | 30.12 x 11.93 x 21.85 inch |
| Refrigerant Type | R454B |
| Precharge | 25 ft |
| Additional charge for 1/4 inch liquid pipe | 0.16 oz |
| Additional charge for 3/8 inch liquid pipe | / oz |
| Refrigerant piping Liquid side/Gas side | 1/4"/3/8" inch |
| Max. pipe length | 82 ft |
| Max. difference in level | 49.2 ft |
| Ambient temperature Cooling | -22 ~ 122 F |
