Cooper & Hunter | Ceiling Cassette Series
Model: CH-RSH06-12MCT1W
BTU
12,000
SEER2
22.1
Voltage
208-230V, 1Ph, 60Hz V, Ph, Hz
Refrigerant
R454B
Outdoor: CH-RHP12-230VO
Cooper & Hunter 6-Zone Mini Split AC & Heat Pump -- 60000 (5.0 Ton), One-Way Ceiling Cassette Units (6K+9K+9K+9K+18K+18K BTU), Inverter Technology, 230V, Heating & Cooling - R454B
Enjoy targeted, low-profile comfort with the new 6-Zone R454B One-Way Ceiling Cassette Mini Split System by Cooper & Hunter. A 60,000 BTU outdoor condenser powers cassette heads that slide neatly between ceiling joists while providing whisper-quiet heating and cooling down to -13 F. One-Way cassettes use TU1 copper heat-exchangers, an integrated condensate pump, built-in Wi-Fi smart kits, and eco-friendly R454B refrigerant for efficiency up to 22 SEER2. On the 6K-12K model a simple ENC1 dip-switch lets you select 6K, 9K, or 12K capacity on site for true application flexibility.
Included in Your Order
Cooper & Hunter One-Way Cassette Mini Split System
Outdoor Unit : 60,000 BTU (1 pc) - Model CH-R60MES-230VO
Indoor Units :
- 6,000‑12,000 BTU (4 pcs) - Model: CH-RSH06-12MCT1W
- 18,000 BTU (2 pcs) - Model: CH-RSH18MCT1W
Capacity Selection (Dip-Switch ENC1)
Set ENC1 from "0" to "1" → 6,000 BTU
Set ENC1 from "0" to "2" → 9,000 BTU
Set ENC1 from "0" to "3" → 12,000 BTU
Installation-Kit options (No Kit / 16 ft / 25 ft / 50 ft) (INSTALLATION KIT SIZE MUST BE SELECTED, to be included)

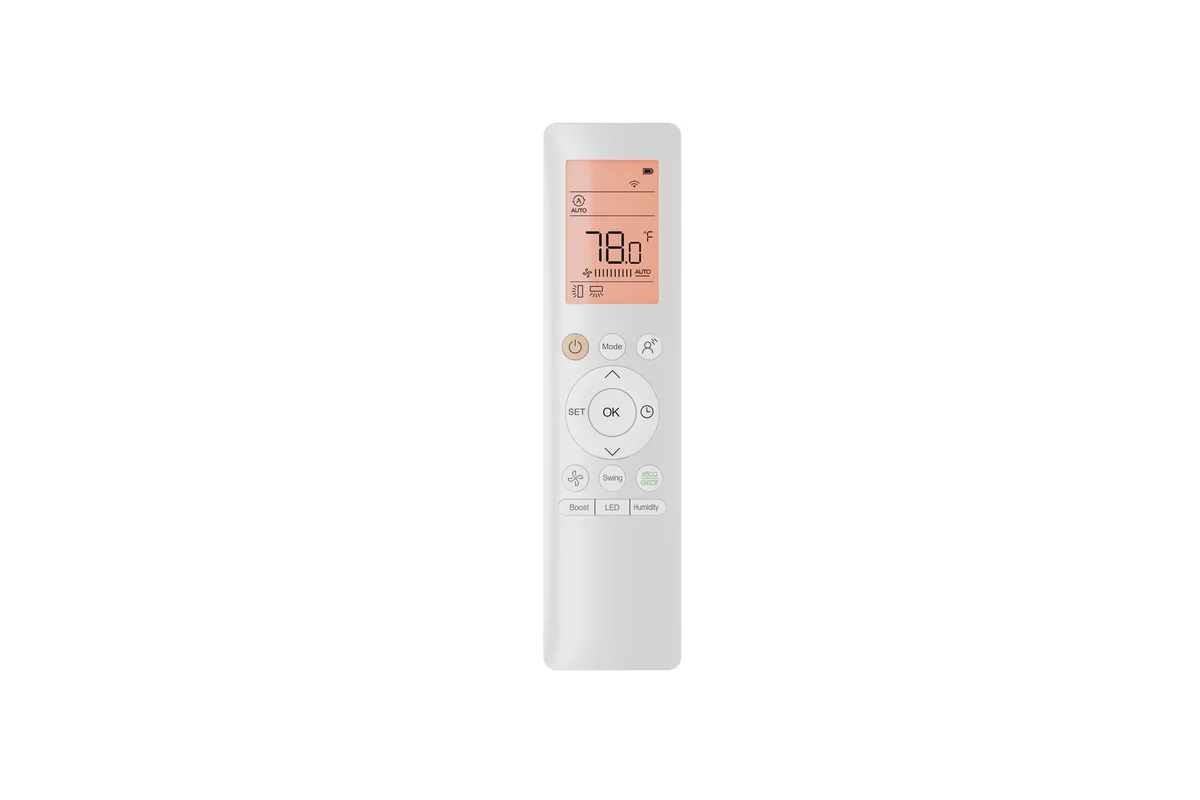

Wireless Remote Controls (6 remotes)
Built-in Smart-Kit & C&H App control
Wall Thermostat
Installation & User Manuals
Manufacturer Warranty
Key Features
6-zone independent temperature control

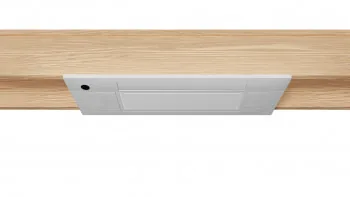

One-Way airflow - perfect between 16 in joists
Up to 22 SEER2 efficiency
Quiet operation (as low as 65 dB)
Reliable heating down to -13 F ambient
Built-in condensate pump & circuit breaker
Humidity & refrigerant sensors for optimal comfort
TU1 Copper heat exchangers for long life
Turbo mode for rapid conditioning
2025 model - R454B refrigerant (low-GWP)
Complete Technical Specifications
Indoor Unit: CH-RSH06-12MCT1W (6,000
| CH-R | R O + CH- |
| Indoor Model | CH-RSH06-12MCT1W |
| Power supply | 208-230V, 1Ph, 60Hz V, Ph, Hz |
| Communication wiring | AWG 14-4 |
| Cooling Capacity | 12,000 (3,900~13,800) Btu/h |
| Input | 34 w |
| Rated current | 4.7 (1.5~5.5) A |
| EER/EER2 | 12.3 Btu/w |
| SEER/SEER2 | 22.1 Btu/w |
| Heating at 47 °F Capacity | 12,000 (4,700~15,300) Btu/h |
| COP | 3.4 W/W |
| HSPF4/HSPF2-4 | 10 |
| HSPF5/HSPF2-5 | 7.8 |
| Indoor fan motor | 1 Qty |
| Indoor air flow (Turbo/Hi/Med/Lo) (No duct) | 353.2 / 312 / 282.5 / 247.2 CFM |
| ESP (range) | / ln.wg. |
| Indoor noise level (Hi/Med/Lo) | 43/37.5/26 dB(A) |
| Dehumidification | 3.26 L/H |
| Indoor unit Dimensions (WxDxH) | 50.31 x 13.19 x 8.98 inch |
| Packing (WxDxH) | 34.92 x 13.27 x 24.02 inch |
| Net/Gross weight | 62.17/67.68 inch |
| Drainage water pipe diameter | 3/4" inch |
| Refrigerant piping (Liquid side/Gas side) | 1/4"/3/8" inch |
| Design pressure | 550/340 PSIG |
| Controller | wire controller + remote controller available |
| Room temperature Cooling | 60~90 F |
| Heating | -13~75 F |
| Outdoor Model | CH-RES12-230VO |
| Min. circuit ampacity | 12 A |
| Max. fuse | 15 A |
| Compressor Model | KSK103D33UEZ3 |
| Type | ROTARY |
| Brand | GMCC |
| Capacity | 11,100 Btu/h |
| Rated current (RLA) | 7.3 A |
| Refrigerant oil | VG74 10.5 oz |
| Outdoor fan motor Qty | 1 |
| RLA | 0.6 A |
| Speed | 800/700/600 r/min |
| Outdoor air flow (Max) | 1,236.1 CFM |
| Outdoor noise level (Max) | 54.5 dB(A) |
| Throttle type | EXV |
| Outdoor unit Dimensions (WxDxH) | 30.12 x 11.93 x 21.85 inch |
| Refrigerant Type | R454B |
| Precharge | 25 ft |
| Additional charge for 1/4 inch liquid pipe | 0.16 oz |
| Additional charge for 3/8 inch liquid pipe | / oz |
| Refrigerant piping Liquid side/Gas side | 1/4"/3/8" inch |
| Max. pipe length | 82 ft |
| Max. difference in level | 49.2 ft |
| Ambient temperature Cooling | -13 ~ 122 F |
