Cooper & Hunter | Olivia Series
Model: CH-RB18MOLVWM-230VI
BTU
18,000
SEER2
24
EER2
10
Voltage
208-230V/60Hz
Refrigerant
R454B
Noise Level (dB)
45.5/41/24.5
Airflow (CFM)
760.59/530.59/458.82/382.35
Outdoor: CH-RES18-230VO
Cooper & Hunter 3-Zone Mini Split AC & Heat Pump -- 60000 (5.0 Ton), Wall Mount Units (18K+18K+18K BTU), Inverter Technology, 230V, Heating & Cooling - R454B
Summary

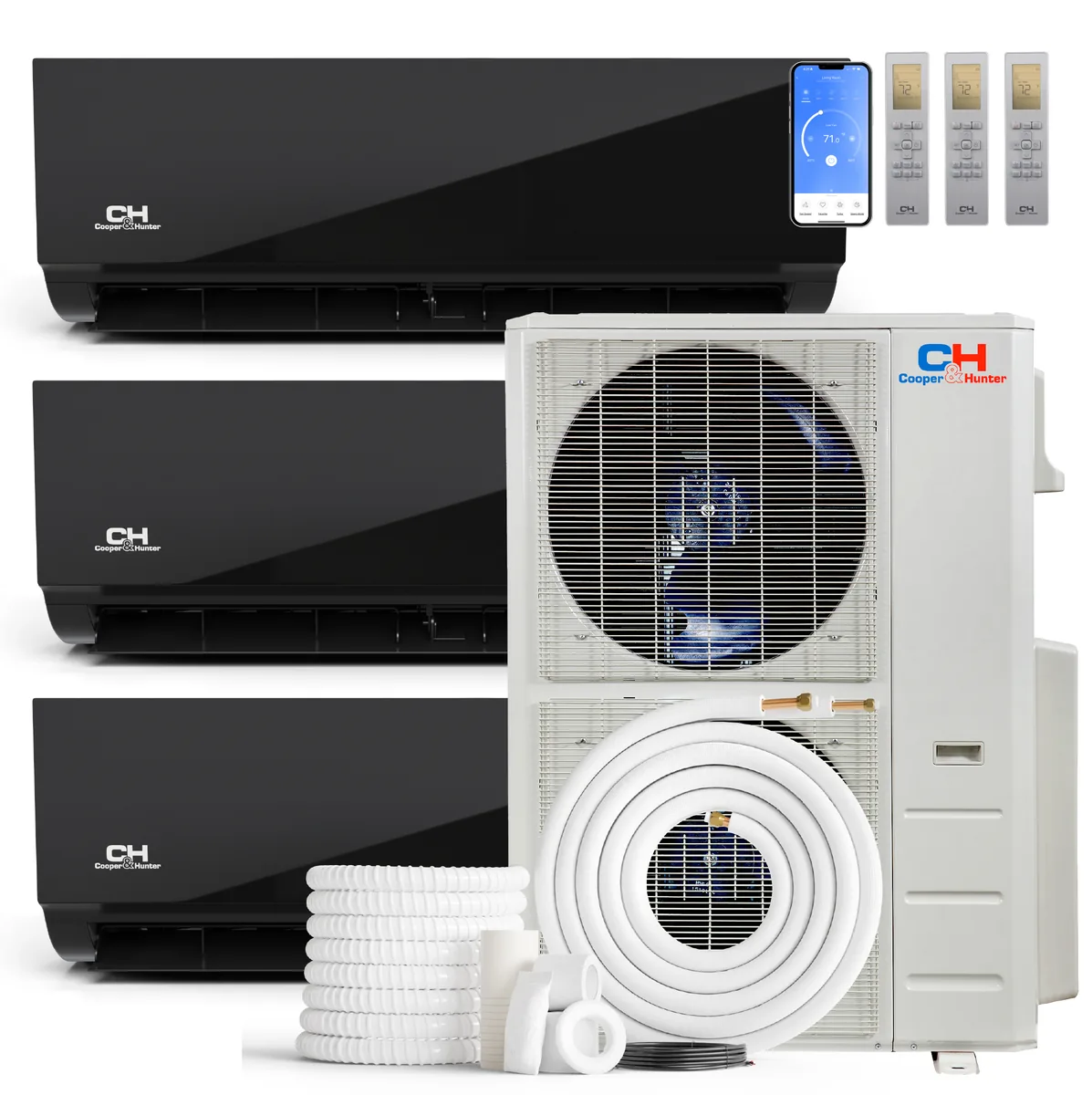

The Cooper & Hunter Olivia Series system features a 60,000 BTU outdoor unit paired with 3X CH-RB18MOLVWM-230VI wall-mounted indoor units. This high-efficiency model with auto-swing louvers will heat & cool down to -13 F. The DC inverter heat pump provides independent control in 3 zones.
Included in Your Order:
Cooper & Hunter Olivia Series Ductless Mini Split System
Outdoor Unit: 60,000 BTU (1 pc) - Model: CH-R60MES-230VO
Indoor Units:
- 18,000 BTU (3 pcs) - Model: CH-RB18MOLVWM-230VI
Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft) (INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE)
Wireless Remote Controls (3 remotes)
Wi-Fi Adapter (17310900A05963)
Installation Manual
User's Manual
Manufacturer Warranty
Key Features:
3-zone independent temperature control
High efficiency operation (22 SEER2)
Heats down to -13 F ambient temperature
Auto-Swing horizontal/vertical louvers
Turbo Mode for rapid cooling/heating
Self-Clean Function
Wi-Fi ready
Quiet operation (as low as 65 dB)
Energy saving modes
2025 model with latest technology
Complete Technical Specifications

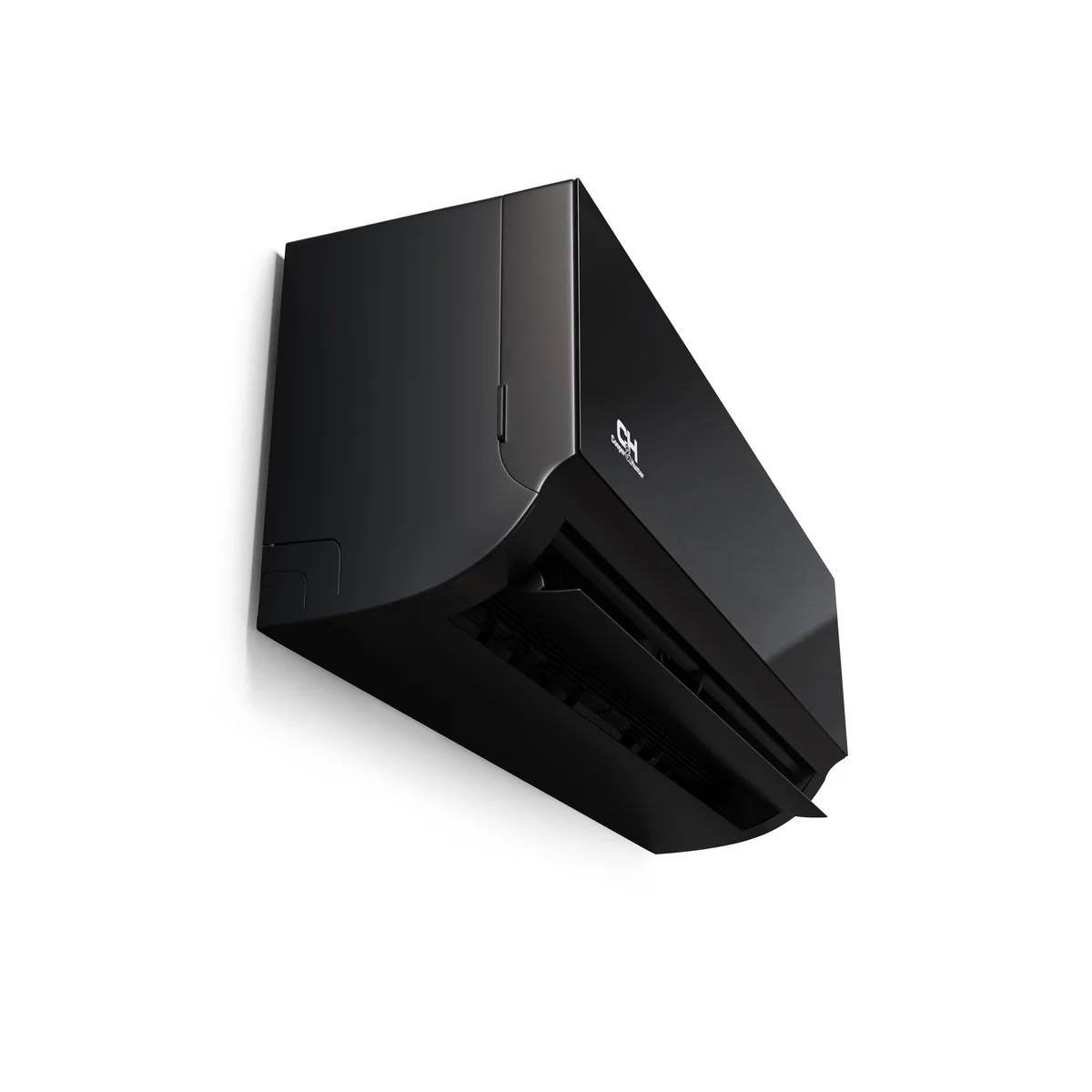

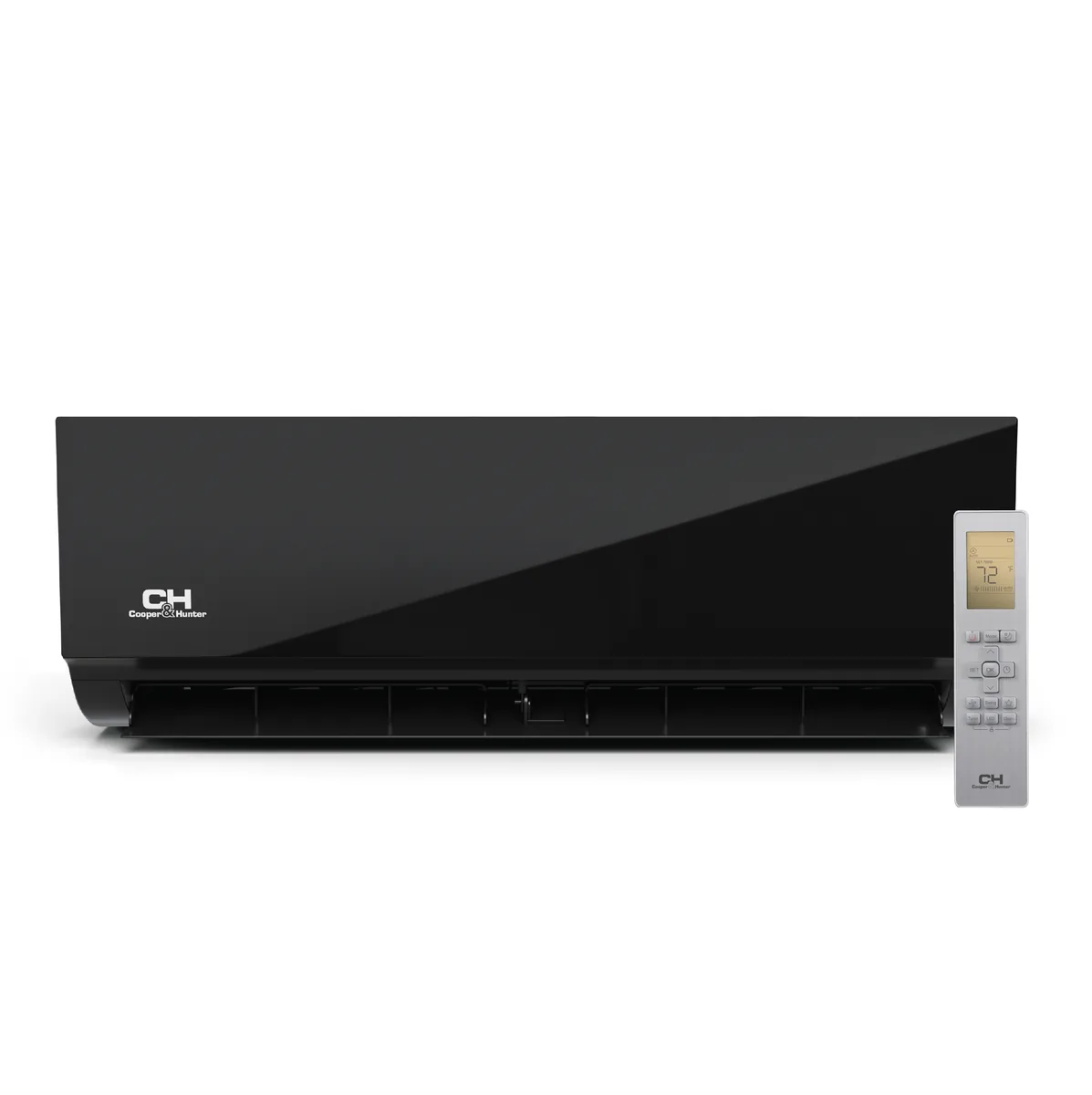

Indoor Unit: CH-RB18MOLVWM-230VI (18,000 BTU) x3
Refrigerant type R454B
System type Single/Multi-zone unit
BTU Rated 18,000
Power source 208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day) 3.28
Voltage range (V) 187-253
Packing dimensions (WxDxH) 45.47x16.34x12.40
Controller RG10K-exclusive remote
Refrigerant piping Liquid/Gas side (inch) 1/4"/1/2"
EER2 13.5
SEER2 24
Unit Net/Gross weight 29.54/37.48
Unit dimensions (W*H*D) 42.64x9.61x13.23
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 45.5/41/24.5
Indoor Air Flow 760.59/530.59/4
| Refrigerant type | R454B |
| System type | Multi-zone unit |
| BTU Rated | 18,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 10.57 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 43.11 x 19.49 x 58.27 |
| Controller | RG10K-exclusive remote |
| Refrigerant piping Liquid/Gas side (inch) | 6x1/4" - 4x3/8"+2x1/2" |
| EER2 | 10 |
| SEER2 | 22 |
| Unit Net/Gross weight | 237.88/270.28 |
| Unit dimensions (W*H*D) | 37.48 x 16.34 x 52.48 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 36 |
| Max.fuse | 40 |
| Indoor Noise Level H/M/L | 45.5/41/24.5 |
| Indoor Air Flow | 760.59/530.59/458.82/382.35 |
| Drainage water pipe diameter | 5/8" |
| HSPF2-5 | 7.4 |
| HSPF2-4 | 9.5 |
| Cooling capacity (Min/Max) (BTU/h) | 60,000(19,000~62,000) |
| Refrigerant precharge | 150 |
| Outdoor Noise Level | 65 |
| Outdoor Air Flow | 4,502.8 |
| Max height difference between Indoor and Outdoor unit | 49.2 |
| Heating capacity (Min/Max) (Btu/h) | 60,000(20,000~60,000) |
| COP | 3.7 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
