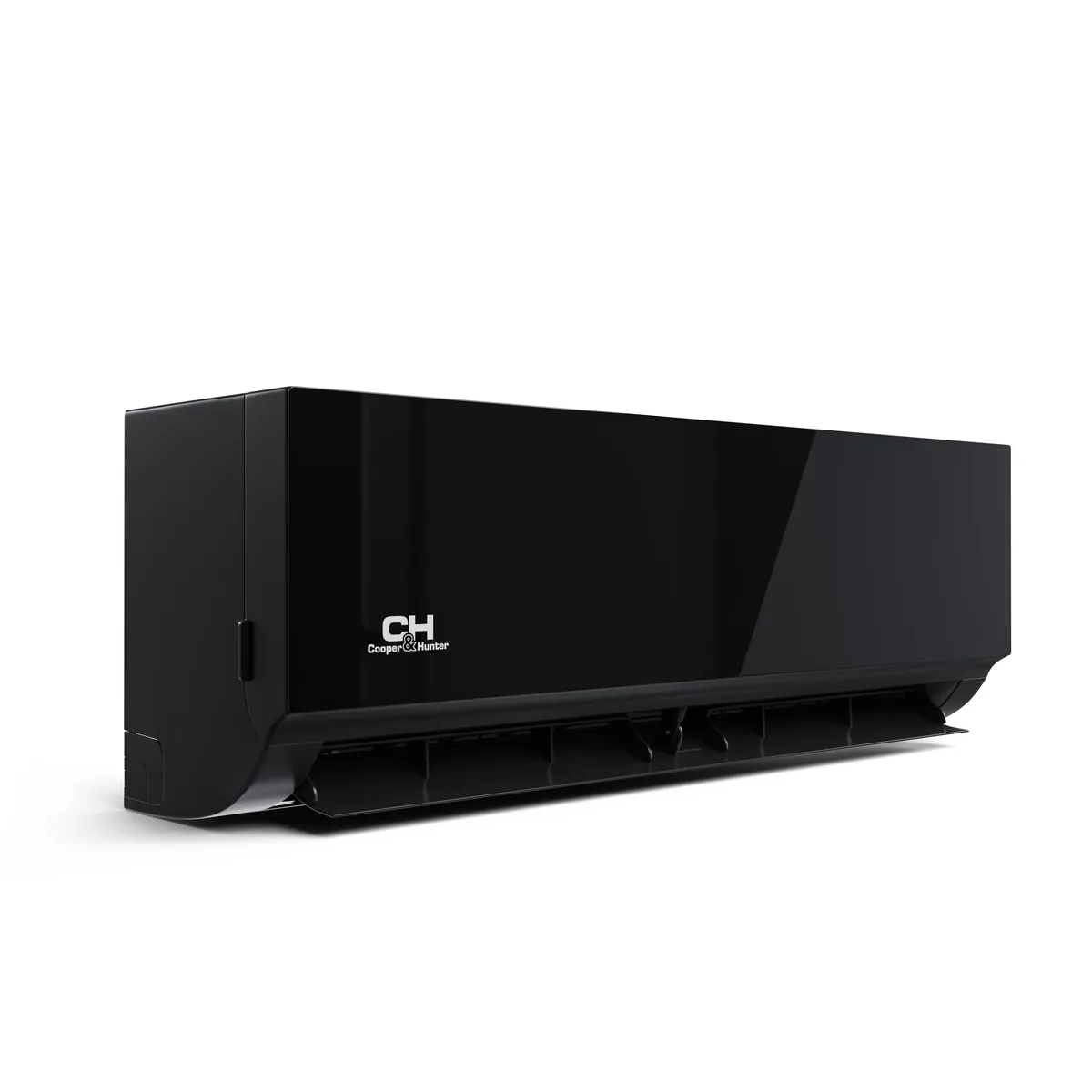

Cooper & Hunter | Olivia Series
Model: CH-RB12MOLVWM-230VI
BTU
12,000
SEER2
23.1
EER2
10
Voltage
208-230V/60Hz
Refrigerant
R454B
Noise Level (dB)
48/40/28
Airflow (CFM)
760.59/601.18/458.82/382.35
Outdoor: CH-RES12-230VO

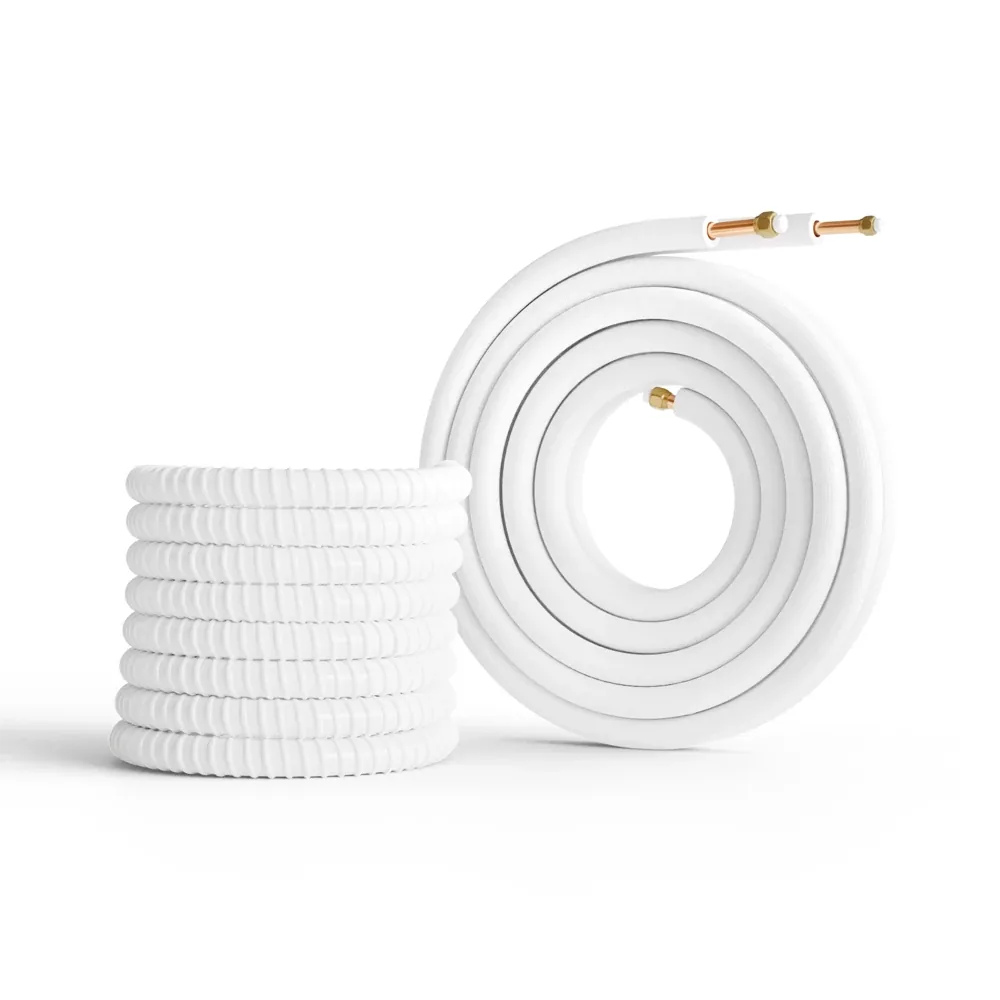

Cooper & Hunter 3-Zone Mini Split AC & Heat Pump -- 60000 (5.0 Ton), Wall Mount Units (12K+18K+24K BTU), Inverter Technology, 230V, Heating & Cooling - R454B Summary The Cooper & Hunter Olivia Series system features a 60,000 BTU outdoor unit paired with CH-RB12MOLVWM-230VI + CH-RB18MOLVWM-230VI + CH-RB24MOLVWM-230VI wall-mounted indoor units. This high-efficiency model with auto-swing louvers will heat & cool down to -13 F. The DC inverter heat pump provides independent control in 3 zones. Included in Your Order: Cooper & Hunter Olivia Series Ductless Mini Split System Outdoor Unit: 60,000 BTU (1 pc) - Model: CH-R60MES-230VO Indoor Units: - 12,000 BTU (1 pcs) - Model: CH-RB12MOLVWM-230VI - 18,000 BTU (1 pcs) - Model: CH-RB18MOLVWM-230VI - 24,000 BTU (1 pcs) - Model: CH-RB24MOLVWM-230VI Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft) (INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE) Wireless Remote Controls (3 remotes) Wi-Fi Adapter (17310900A05963) Installation Manual User's Manual Manufacturer Warranty Key Features: 3-zone independent temperature control High efficiency operation (22 SEER2) Heats down to -13 F ambient temperature Auto-Swing horizontal/vertical louvers Turbo Mode for rapid cooling/heating Self-Clean Function Wi-Fi ready Quiet operation (as low as 65 dB) Energy saving modes 2025 model with latest technology Complete Technical Specifications Indoor Unit: CH-RB12MOLVWM-230VI (12,000 BTU) x1 Refrigerant type R454B System type Single/Multi-zone unit BTU Rated 12,000 Power source 208-230V, 1Ph, 60Hz Dehumidification value (pnt/day) 2.83 Voltage range (V) 187-253 Packing dimensions (WxDxH) 34.45x11.22x14.96 Controller RG10K-exclusive remote Refrigerant piping Liquid/Gas side (inch) 1/4"/1/2" EER2 13 SEER2 23.1 Unit Net/Gross weight 18.74/24.25 Unit dimensions (W*H*D) 31.57x7.87x11.61 Operation Range - Heating 32~86
| Refrigerant type | R454B |
| System type | Multi-zone unit |
| BTU Rated | 24,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 10.57 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 43.11 x 19.49 x 58.27 |
| Controller | RG10K-exclusive remote |
| Refrigerant piping Liquid/Gas side (inch) | 6x1/4" - 4x3/8"+2x1/2" |
| EER2 | 10 |
| SEER2 | 22 |
| Unit Net/Gross weight | 237.88/270.28 |
| Unit dimensions (W*H*D) | 37.48 x 16.34 x 52.48 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 36 |
| Max.fuse | 40 |
| Indoor Noise Level H/M/L | 48/40/28 |
| Indoor Air Flow | 760.59/601.18/458.82/382.35 |
| Drainage water pipe diameter | 5/8" |
| HSPF2-5 | 7.4 |
| HSPF2-4 | 9.5 |
| Cooling capacity (Min/Max) (BTU/h) | 60,000(19,000~62,000) |
| Refrigerant precharge | 150 |
| Outdoor Noise Level | 65 |
| Outdoor Air Flow | 4,502.8 |
| Max height difference between Indoor and Outdoor unit | 49.2 |
| Heating capacity (Min/Max) (Btu/h) | 60,000(20,000~60,000) |
| COP | 3.7 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
