Cooper & Hunter
Model: CH-R60MES-230VO
BTU
60,000
SEER2
22
EER2
Btu/h
Voltage
208-230V/60Hz
Refrigerant
R454B
Cooper&Hunter Multi-Zone R454B, 60,000 BTU (5 Ton) 230V Outdoor Condenser Air Conditioner, Heat Pump, Mini Split Inverter System Up To 22 SEER2 (2-6 Zones) CH-R60MES-230VO
Summary
The option to choose both, aesthetics and functionality is brought by Cooper&Hunter's The ES condenser series features Energy Star Certified units in 18K, 28K, 36k, 48K, and 60k Btu/h options. Multi zone models are available to be paired with Wall Mounts, Ceiling Cassettes, Slim Ducts, Universal Floor/Ceiling, Mini Floor Consoles, and Air Handler Units to reach up to 24 SEER. This standard unit can heat and cool your home or office effectively down to -13°F.
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online. This is an Outdoor Unit ONLY. Please ensure that you have made a correct selection for an indoor unit as well in our Indoor Units section. Units are pre-charged with refrigerant up to 100FT.
What's Included
60,000 BTU 230V Multi-Zone Outdoor Condenser Air Conditioner (CH-R60MES-230VO)
Installation Manual
User's Manual
Manufacturer Warranty
Zone Combinations
*Note: Units marked in RED can be either a Multi-position Air Handler, or other Indoor unit TYPE
2 Zone CH-R60MES-230VO
6K 18K
6K 24K
6K 30K
6K 36K
9K 18K
9K 24K
9K 30K
9K 36K
12K 12K
12K 18K
12K 24K
12K 30K
12K 36K
18K 18K
18K 24K
18K 30K
18K 36K
24K 24K
24K 30K
24K 36K
3 Zone CH-R60MES-230VO
6K 6K 18K
6K 6K 24K
6K 6K 30K
6K 6K 36K
6K 9K 9K
6K 9K 12K
6K 9K 18K
6K 9K 24K
6K 9K 30K
6K 9K 36K
6K 12K 12K
6K 12K 18K
6K 12K 24K
6K 12K 30K
6K 12K 36K
6K 18K 18K
6K 18K 24K
6K 18K 30K
6K 18K 36K
9K 9K 9K
9K 9K 12K
9K 9K 18K
9K 9K 24K
9K 9K 30K
9K 9K 36K
9K 12K 12K
9K 12K 18K
9K 12K 24K
9K 12K 30K
9K 12K 36K
9K 18K 18K
9K 18K 24K
9K 18K 30K
9K 18K 36K
12K 12K 12K
12K 12K 18K
12K 12K 24K
12K 12K 30K
12K 12K 36K
12K 18K 18K
12K 18K 24K
12K 18K 30K
12K 18K 36K
18K 18K 18K
4 Zone CH-R60MES-230VO
6K 6K
| Refrigerant type | R454B |
| System type | Multi-zone unit |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 10.57 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 43.11 x 19.49 x 58.27 |
| Refrigerant piping Liquid/Gas side (inch) | 6x1/4" - 4x3/8"+2x1/2" |
| HSPF2-5 | 7.4 |
| HSPF2-4 | 9.5 |
| EER2 | Btu/h |
| Cooling capacity (Min/Max) (BTU/h) | 60,000(19,000~62,000) |
| SEER2 | Btu/h |
| Unit Net/Gross weight | 237.88/270.28 |

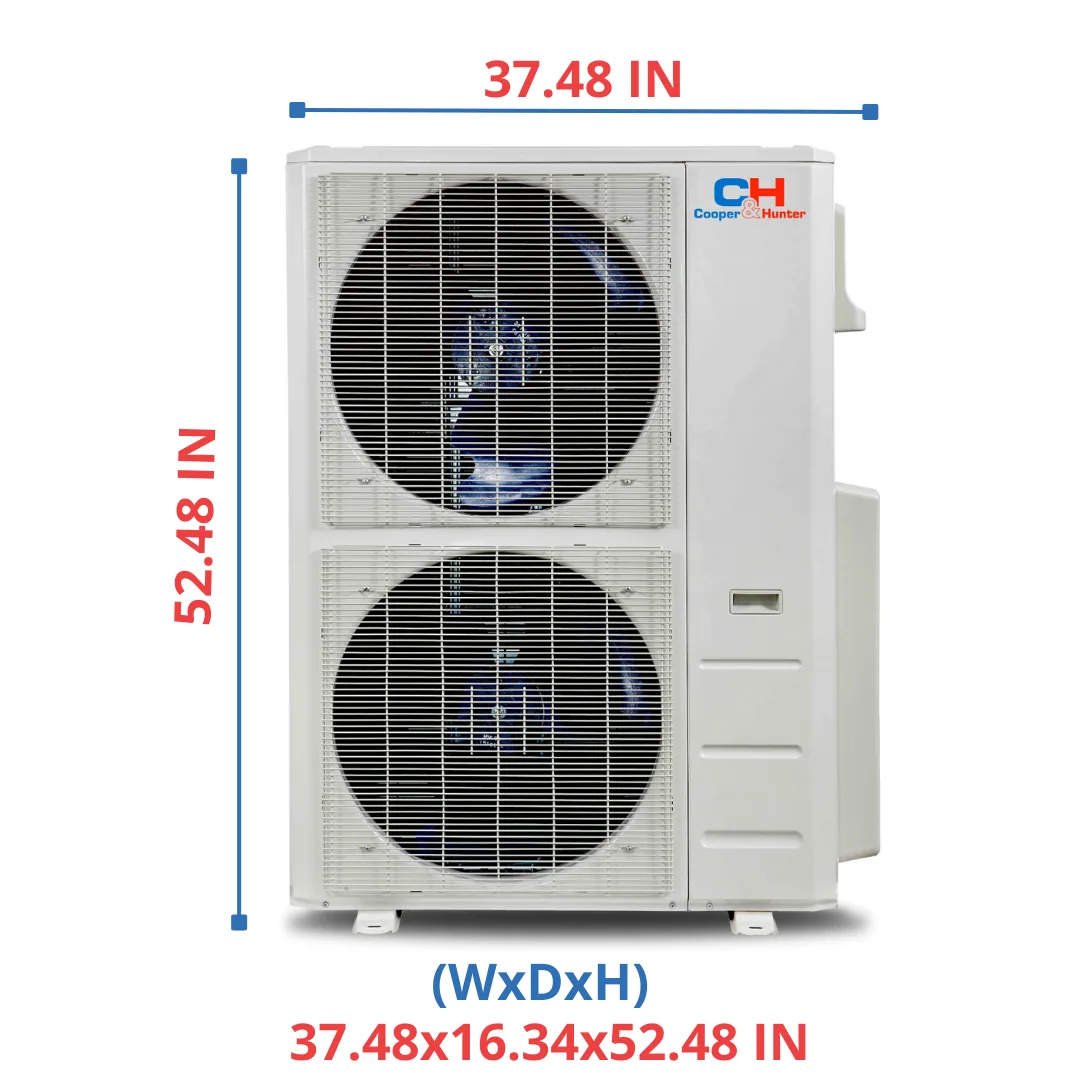

| Unit dimensions (W*H*D) | 37.48 x 16.34 x 52.48 |
| Refrigerant precharge | 150 |
| Outdoor Noise Level | 65 |
| Outdoor Air Flow | 4,502.8 |
| Minimum circuit ampacity | 36 |
| Max.fuse | 40 |
| Max height difference between Indoor and Outdoor unit | 49.2 |
| Heating capacity (Min/Max) (Btu/h) | 60,000(20,000~60,000) |
| COP | W/W |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
| 6K | 12K |
| 9K | 12K |
| 12K | 12K |
| 18K | 18K |
| 24K | 36K |
| Rated | V, Ph, Hz |
| Voltage Range | V |
| Rated Capacity (range) | Btu/h |
| Rated Current | A |
| Heating at 5°F | Rated Capacity |
| Btu/h | 39000 |
| Minimum Circuit Ampacity (Outdoor unit) | A |
| Max. Fuse (Outdoor unit) | A |
| Outdoor Air Flow (Max) | CFM |
| Outdoor Noise Level (Sound Pressure) | dB(A) |
| Dimension (W×D×H) | inch |
| Packing (W×D×H) | inch |
| Refrigerant Type/Charged | oz |
| Additional Charge for Each | 0.16 for 1/4 in liquid pipe / 0.32 for 3/8 in liquid pipe |
| oz/ft | 0.16/0.32 |
| Design Pressure | PSIG |
| Liquid Side | inch |
| Gas Side | inch |
| Max. Pipe Length | ft |
| Max. Length for One Indoor Unit | ft |
| Max. Height Difference in Level | ft |
| Max. Height Difference Between Indoor Units | ft |
| Cooling | °F |
| Heating | °F |
