Cooper & Hunter
Model: CH-R48MES-230VO
BTU
48,000
SEER2
24
EER2
12.5
Voltage
208-230V/60Hz
Refrigerant
R454B
Cooper & Hunter Olivia Series 6-Zone Ductless Mini Split AC & Heat Pump -- 48000 BTU (4.0 Ton), Wall Mount Units (9K+9K+9K+12K+12K+12K) BTU, Inverter Technology, 230V, Heating & Cooling - R454B
Summary
The Cooper & Hunter Olivia Series system features a 48000 BTU outdoor unit paired with 3X CH-R09MOLVWM-230VI + 3X CH-R12MOLVWM-230VI wall-mounted indoor units. This high-efficiency model with auto-swing louvers will heat & cool down to -13 F. The DC inverter heat pump provides independent control in 6 zones.

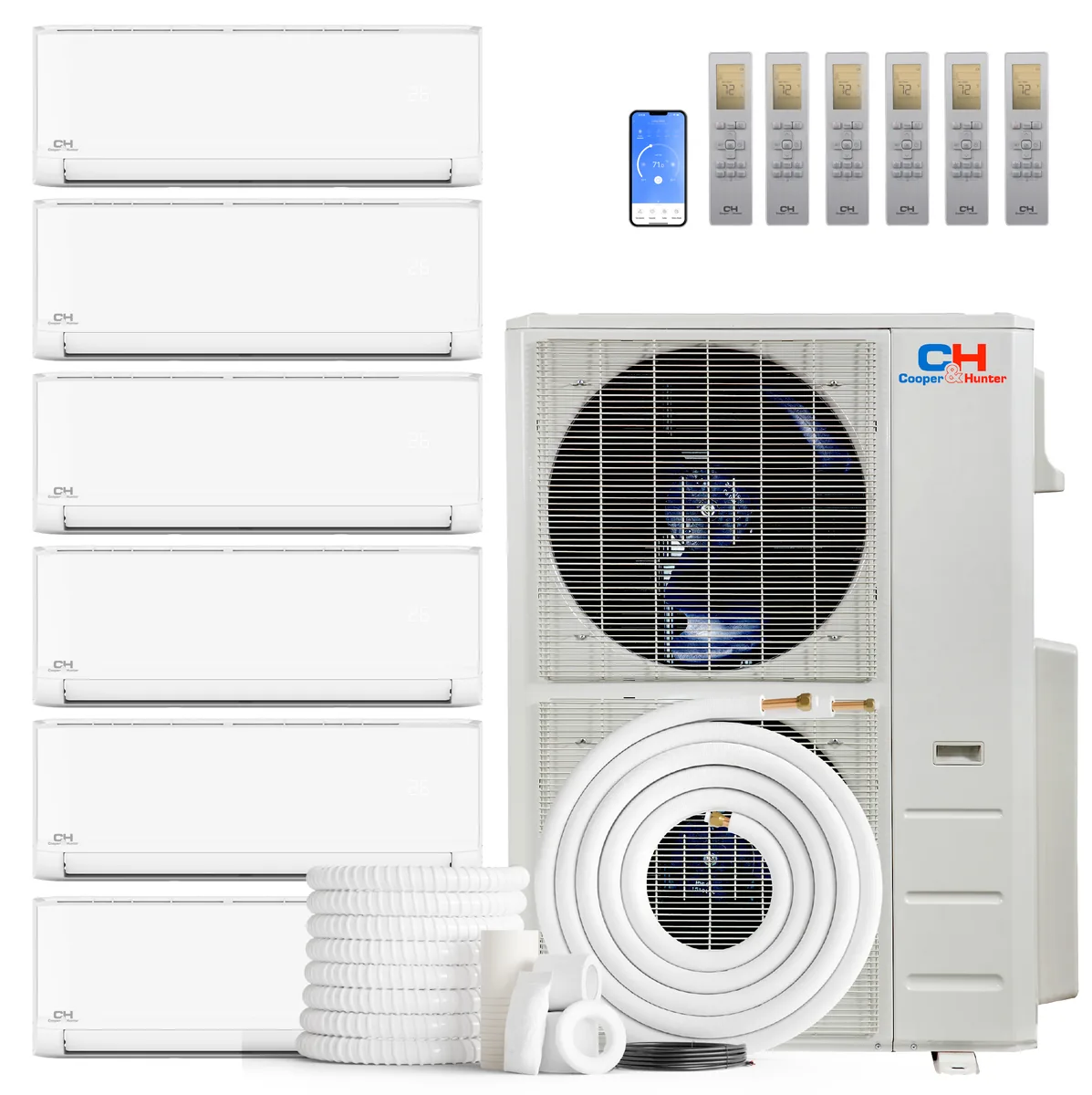

Included in Your Order:
Cooper & Hunter Olivia Series Ductless Mini Split System

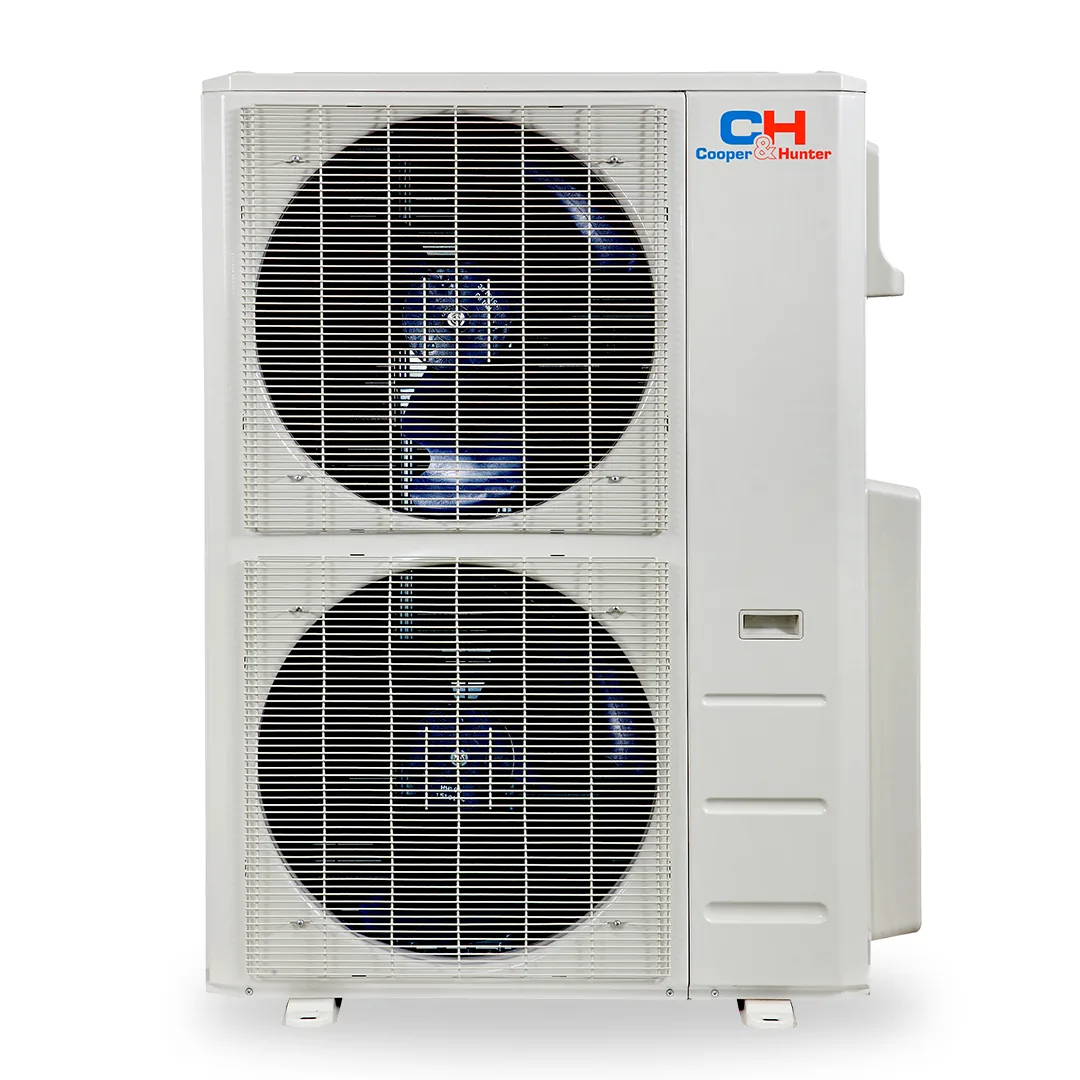

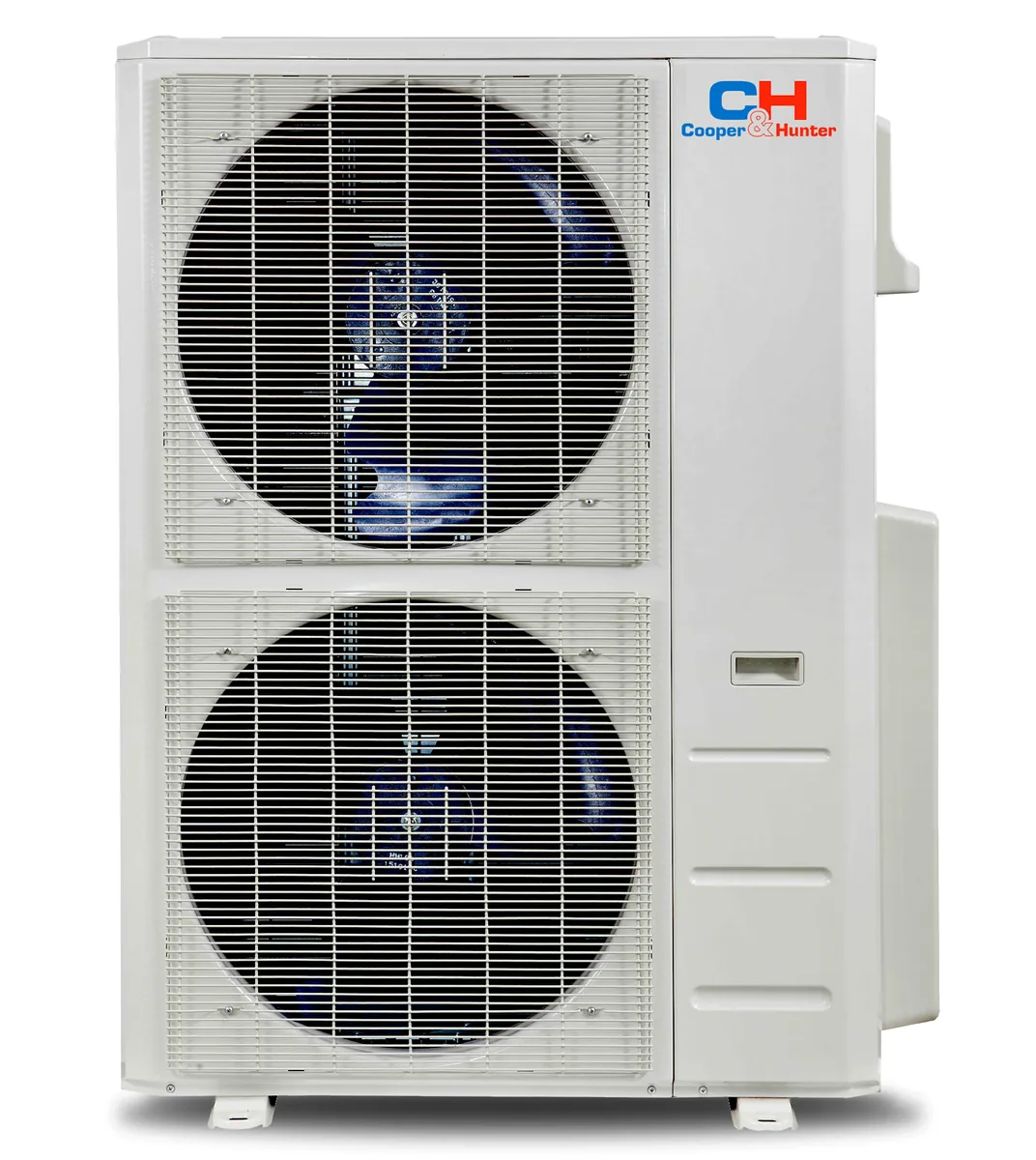

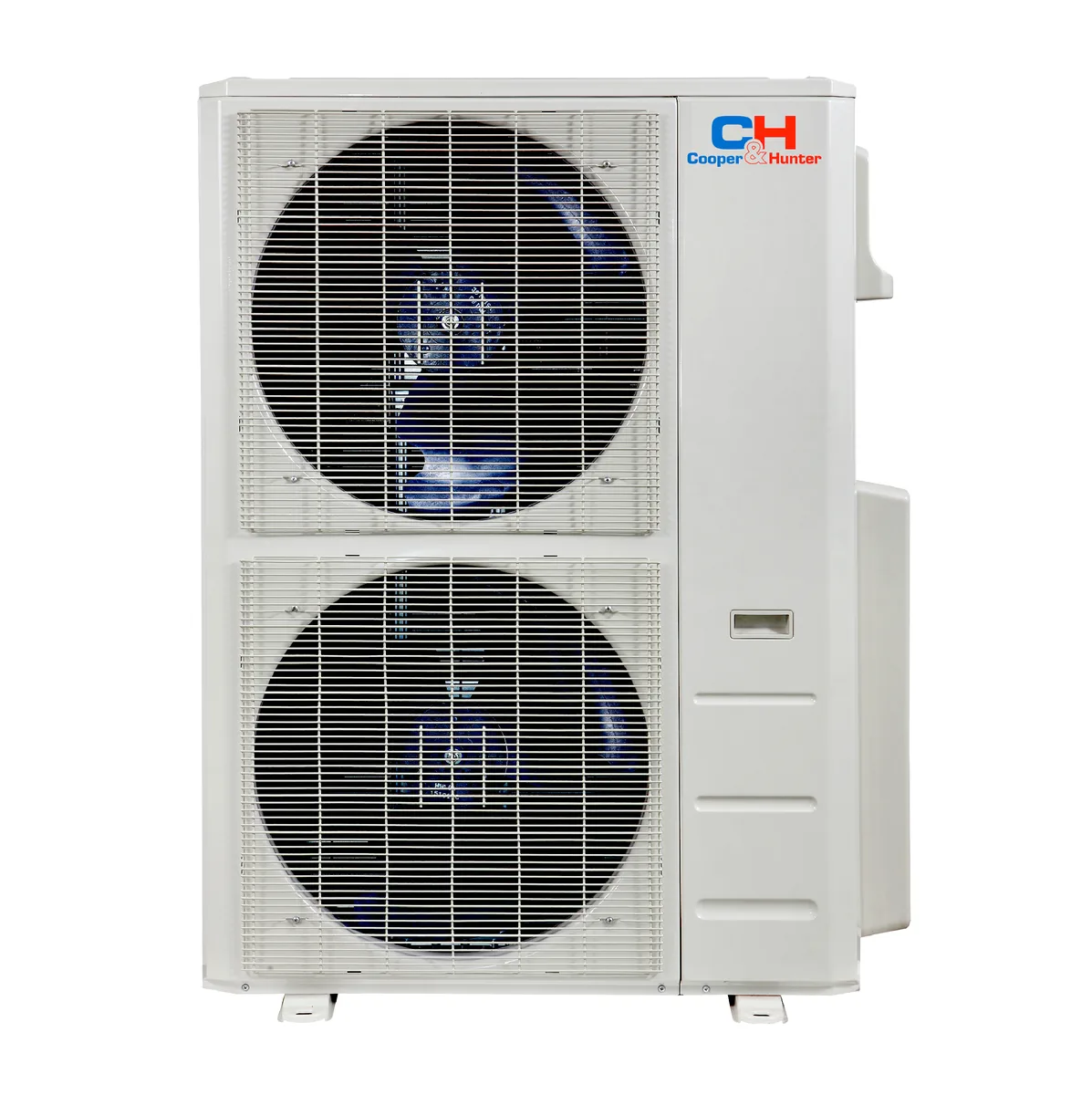

Outdoor Unit: 48000 BTU (1 pc) - Model: CH-R48MES-230VO
Indoor Units:
- 9,000 BTU (3 pcs) - Model: CH-R09MOLVWM-230VI
- 12,000 BTU (3 pcs) - Model: CH-R12MOLVWM-230VI
Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft) (INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE)
Wireless Remote Controls (6 remotes)
Wi-Fi Adapter (17310900A05963)
Installation Manual
User's Manual
Manufacturer Warranty
Key Features:
6-zone independent temperature control
High efficiency operation (24 SEER2)
Heats down to -13 F ambient temperature
Auto-Swing horizontal/vertical louvers
Turbo Mode for rapid cooling/heating
Self-Clean Function
Wi-Fi ready
Quiet operation (as low as 63 dB)
Energy saving modes
2025 model with latest technology
Complete Technical Specifications
Indoor Unit: CH-R09MOLVWM-230VI (9,000 BTU) x3
Indoor Model CH-R09MOLVWM-230VI
Power Supply (Rated) 208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h 9,000
Minimum Circuit Ampacity (MCA) 3
Max. fuse (A) 15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) 382.6/294.3/194.2/ 153.0/ N/A
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) N/A/39.5/33/24/20.5
Dimension (WxDxH) (in) 31.57x7.87x11.61
Packing (WxDxH) (in) 31.57x7.87x11.61
Net/Gross Weight (lb) 18.96/24.25
Room Temperature (Cooling) (°F) 60–90
Room Temperature (Heating)
| Refrigerant type | R454B |
| System type | Multi-zone unit |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 6.98 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 43.11 x 19.49 x 58.27 |
| Refrigerant piping Liquid/Gas side (inch) | 6x1/4" - 4x3/8"+2x1/2" |
| HSPF2-5 | 8 |
| HSPF2-4 | 10.3 |
| EER2 | 12.5 |
| Cooling capacity (Min/Max) (BTU/h) | 47,000(12,000~55,000) |
| SEER2 | 24 |
| Unit Net/Gross weight | 222.00/254.19 |
| Unit dimensions (W*H*D) | 37.48 x 16.34 x 52.48 |
| Refrigerant precharge | 150 |
| Outdoor Noise Level | 63 |
| Outdoor Air Flow | 4,502.8 |
| Minimum circuit ampacity | 34 |
| Max.fuse | 40 |
| Max height difference between Indoor and Outdoor unit | 49.2 |
| Heating capacity (Min/Max) (Btu/h) | 48,000(13,000~53,000) |
| COP | 3.8 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
| Indoor Model | CH-R12MOLVWM-230VI |
| Power Supply (Rated) | 208/230 V, 1 Ø, 60 Hz |
| Rated Capacity Btu/h | 12,000 |
| Minimum Circuit Ampacity (MCA) | 3 |
| Max. fuse (A) | 15 |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) | 382.6/294.3/194.2/ 153.0 / / |
| Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) | N/A/42/35.5/22.5/20 |
| Dimension (WxDxH) (in) | 31.57x7.87x11.61 |
| Packing (WxDxH) (in) | 31.57x7.87x11.61 |
| Net/Gross Weight (lb) | 18.96/24.25 |
| Room Temperature (Cooling) (°F) | 60–90 |
| Room Temperature (Heating) (°F) | 32–86 |
