Cooper & Hunter
Model: CH-R30MELVWM-230VI
BTU
30,000
Voltage
208-230V, 1Ph, 60Hz V, Ph, Hz
Refrigerant
R454B
Cooper & Hunter 30K Wall Mount by Cooper & Hunter. Specifications: 30,000 BTU | 208-230V, 1Ph, 60Hz V, Ph, Hz | R454B. Features: Auto-Swing for horizontal louvers, Genius Core ultra-low compressor speed of 12Hz, Smart Kit Ready, Turbo Mode. Model: CH-R30MELVWM-230VI.
| CH-RE | 0 + CH-R3 |
| Indoor Model | CH-R30MELVWM-230VI |
| Power supply | 208-230V, 1Ph, 60Hz V, Ph, Hz |
| Communication wiring | AWG 14-4 |
| Cooling Capacity | 30,000 (6,800~33,900) Btu/h |
| Input | 120 w |
| Rated current | 12.6 (4.1~13) A |
| Heating at 47 °F Capacity | 30,000(12,300~32,100) Btu/h |
| COP | 03.03 W/W |
| HSPF4/HSPF2-4 | 9 |
| HSPF5/HSPF2-5 | 7 |
| Indoor fan motor | 1 Qty |
| Indoor air flow (Turbo/Hi/Med/Lo) (No duct) | 871.1 / 647.5 / 447.3 / 329.6 CFM |
| ESP (range) | / ln.wg. |
| Indoor noise level (Hi/Med/Lo) | 52/45/36 dB(A) |
| Dehumidification | 7.61 L/H |

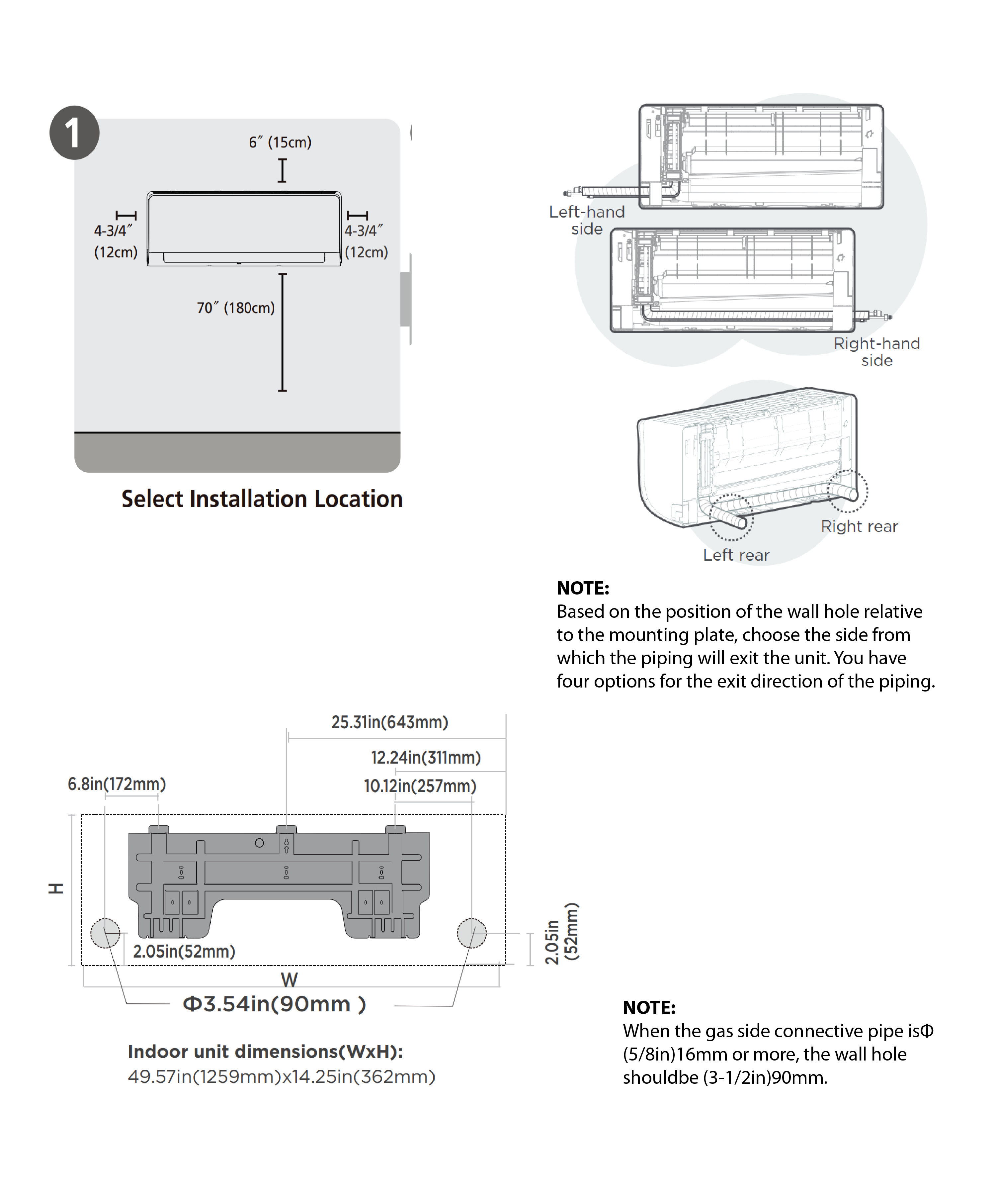

| Indoor unit Dimensions (WxDxH) | 49.57 x 11.14 x 14.25 inch |
| Packing (WxDxH) | 42.91 x 19.68 x 34.84 inch |
| Net/Gross weight | 142.86/154.54 inch |
| Drainage water pipe diameter | 5/8" inch |
| Refrigerant piping (Liquid side/Gas side) | 3/8"/5/8" inch |
| Design pressure | 550/340 PSIG |
| Controller | remote controller |
| Room temperature Cooling | 60~90 F |
| Heating | -13~75 F |
| Outdoor Model | CH-REL30-230VO |
| Min. circuit ampacity | 28 A |
| Max. fuse | 30 A |
| Compressor Model | KTF250D22UMT |
| Type | ROTARY |
| Brand | GMCC |
| Capacity | 27.62 Btu/h |
| Rated current (RLA) | 17.5 A |
| Refrigerant oil | VG74 22.7 oz |
| Outdoor fan motor Qty | 1 |
| RLA | 1.3 A |
| Speed | 900/500 r/min |
| Outdoor air flow (Max) | 2,235.3 CFM |
| Outdoor noise level (Max) | 61.5 dB(A) |
| Throttle type | EXV+Capillary |
| Outdoor unit Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 inch |
| Refrigerant Type | R454B |
| Precharge | 25 ft |
| Additional charge for 1/4 inch liquid pipe | / oz |
| Additional charge for 3/8 inch liquid pipe | 0.32 oz |
| Refrigerant piping Liquid side/Gas side | 3/8"/5/8" inch |
| Max. pipe length | 164 ft |
| Max. difference in level | 82 ft |
| Ambient temperature Cooling | -13 ~ 122 F |
