Cooper & Hunter
Model: CH-R28MES-230VO
BTU
28,000
SEER2
25
EER2
13
Voltage
208-230V/60Hz
Refrigerant
R454B

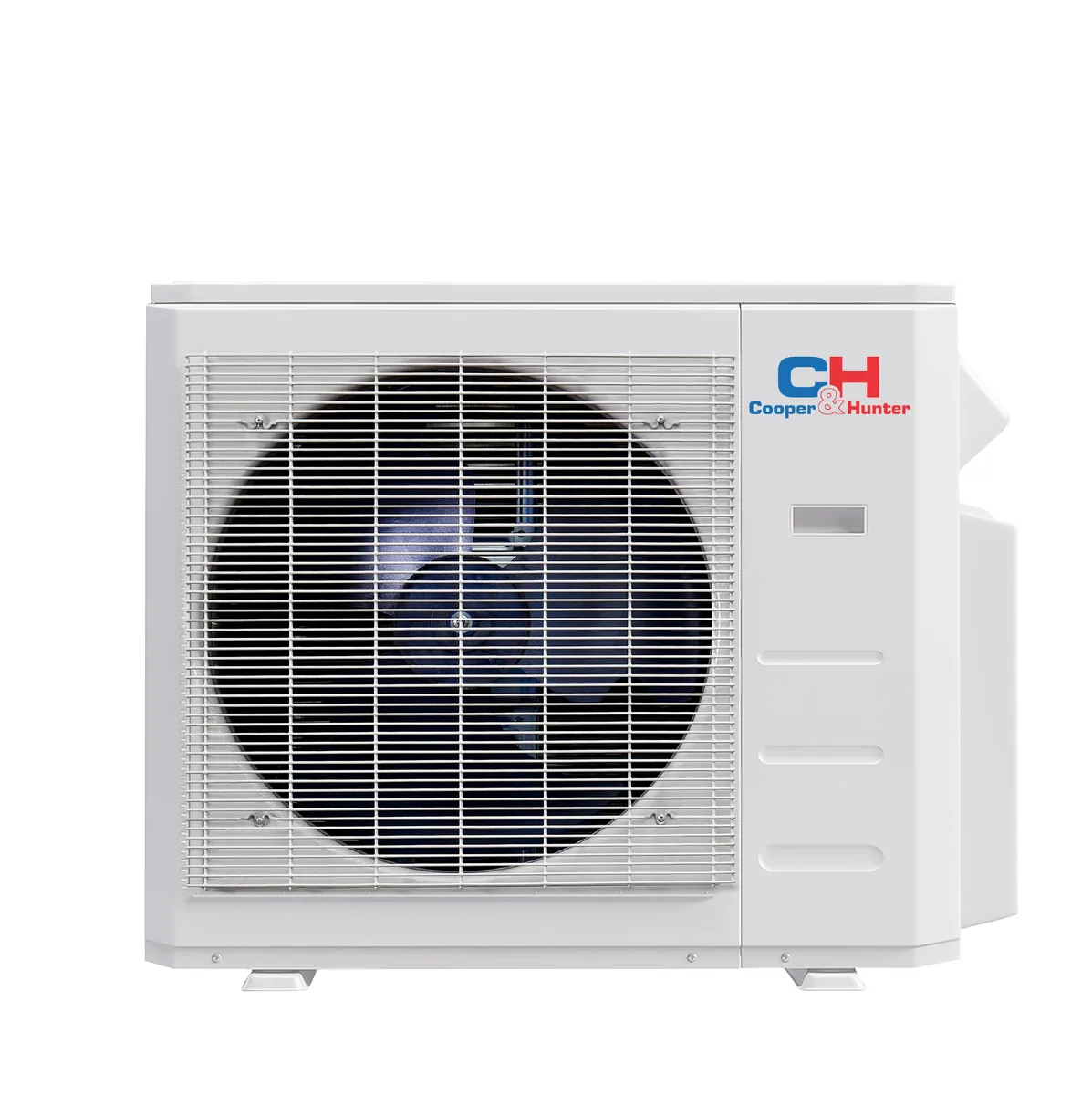

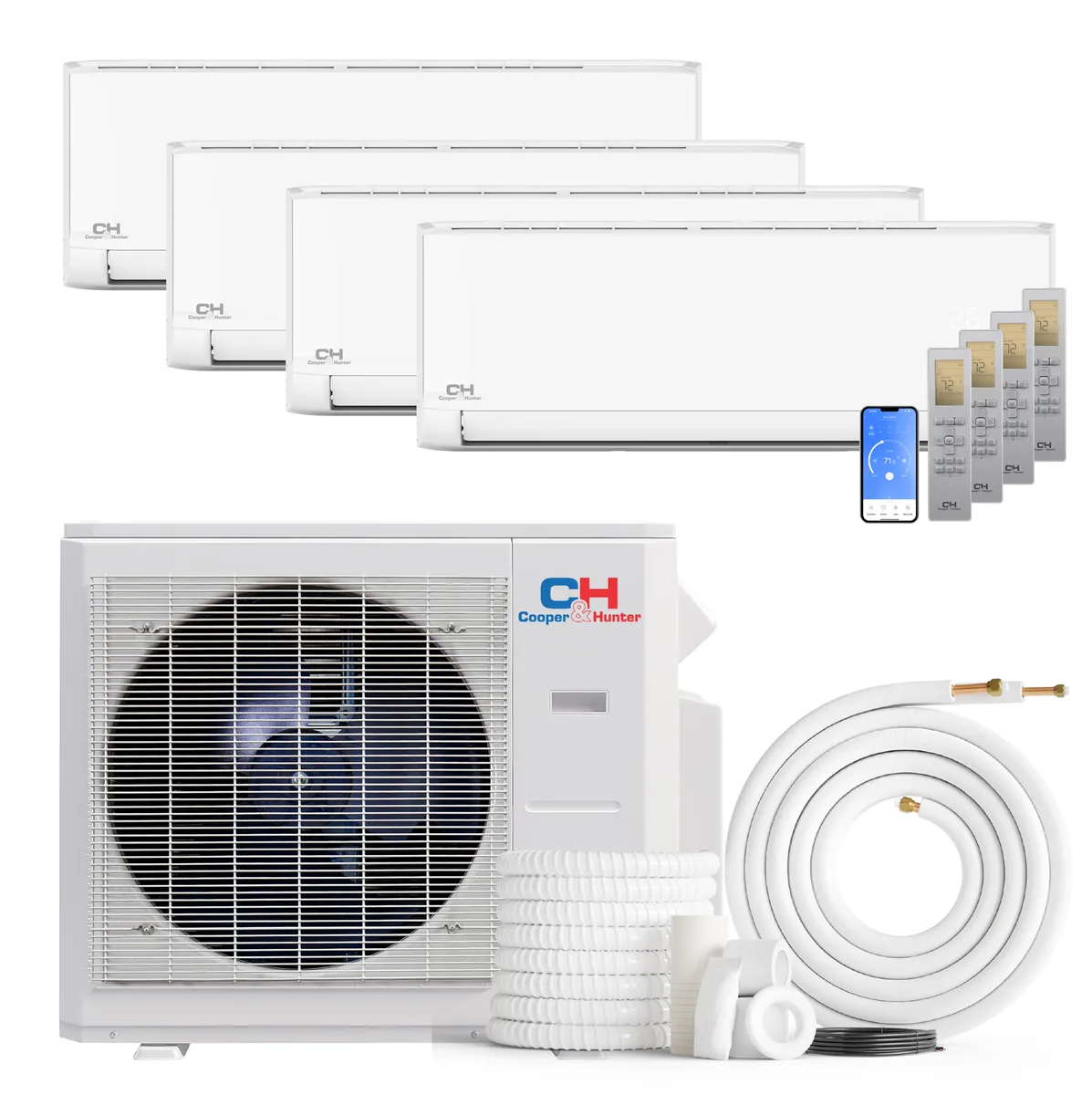

Cooper & Hunter Olivia Series 4-Zone Ductless Mini Split AC & Heat Pump -- 28000 BTU (2.3 Ton), Wall Mount Units (9K+9K+9K+9K) BTU, Inverter Technology, 230V, Heating & Cooling - R454B Summary The Cooper & Hunter Olivia Series system features a 28000 BTU outdoor unit paired with 4X CH-R09MOLVWM-230VI wall-mounted indoor units. This high-efficiency model with auto-swing louvers will heat & cool down to -13 F. The DC inverter heat pump provides independent control in 4 zones. Included in Your Order: Cooper & Hunter Olivia Series Ductless Mini Split System Outdoor Unit: 28000 BTU (1 pc) - Model: CH-R28MES-230VO Indoor Units: - 9,000 BTU (4 pcs) - Model: CH-R09MOLVWM-230VI Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft) (INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE) Wireless Remote Controls (4 remotes) Wi-Fi Adapter (17310900A05963) Installation Manual User's Manual Manufacturer Warranty Key Features: 4-zone independent temperature control High efficiency operation (25 SEER2) Heats down to -13 F ambient temperature Auto-Swing horizontal/vertical louvers Turbo Mode for rapid cooling/heating Self-Clean Function Wi-Fi ready Quiet operation (as low as 61 dB) Energy saving modes 2025 model with latest technology Complete Technical Specifications Indoor Unit: CH-R09MOLVWM-230VI (9,000 BTU) x4 Indoor Model CH-R09MOLVWM-230VI Power Supply (Rated) 208/230 V, 1 Ø, 60 Hz Rated Capacity Btu/h 9,000 Minimum Circuit Ampacity (MCA) 3 Max. fuse (A) 15 Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) 382.6/294.3/194.2/ 153.0/ N/A Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) N/A/39.5/33/24/20.5 Dimension (WxDxH) (in) 31.57x7.87x11.61 Packing (WxDxH) (in) 31.57x7.87x11.61 Net/Gross Weight (lb) 18.96/24.25 Room Temperature (Cooling) (°F) 60–90 Room Temperature (Heating) (°F) 32–86 Refrigerant piping Liquid/Gas side (inch) 1/4"/3/8" Outdoor Unit: CH-R28
| Refrigerant type | R454B |
| System type | Multi-zone unit |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 1.69 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 42.91 x 19.68 x 34.84 |
| Refrigerant piping Liquid/Gas side (inch) | 4x1/4" - 3x3/8"+1x1/2" |
| HSPF2-5 | 7.4 |
| HSPF2-4 | 9.5 |
| EER2 | 13 |
| Cooling capacity (Min/Max) (BTU/h) | 27,000(7,200~32,000) |
| SEER2 | 25 |
| Unit Net/Gross weight | 138.89/149.69 |
| Unit dimensions (W*H*D) | 37.24 x 16.14 x 31.89 |
| Refrigerant precharge | 100 |
| Outdoor Noise Level | 61 |
| Outdoor Air Flow | 2,130.7 |
| Minimum circuit ampacity | 23 |
| Max.fuse | 25 |
| Max height difference between Indoor and Outdoor unit | 49.2 |
| Heating capacity (Min/Max) (Btu/h) | 27,000(8,400~29,000) |
| COP | 3.8 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
| Indoor Model | CH-R09MOLVWM-230VI |
| Power Supply (Rated) | 208/230 V, 1 Ø, 60 Hz |
| Rated Capacity Btu/h | 9,000 |
| Minimum Circuit Ampacity (MCA) | 3 |
| Max. fuse (A) | 15 |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) | 382.6/294.3/194.2/ 153.0/ N/A |
| Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) | N/A/39.5/33/24/20.5 |
| Dimension (WxDxH) (in) | 31.57x7.87x11.61 |
| Packing (WxDxH) (in) | 31.57x7.87x11.61 |
| Net/Gross Weight (lb) | 18.96/24.25 |
| Room Temperature (Cooling) (°F) | 60–90 |
| Room Temperature (Heating) (°F) | 32–86 |
