Cooper & Hunter | Ceiling Cassette Series
Model: CH-RSH36LCCT
BTU
36,600
SEER2
21.2
Voltage
208-230V, 1Ph, 60Hz V, Ph, Hz
Refrigerant
R454B
Outdoor: CH-RHP36LCU-230VO
The Cooper&Hunter 36K Btu Ceiling Cassette PRO is the ultimate climate solution for expansive spaces. Featuring advanced R454B refrigerant, it combines high efficiency and environmentally conscious design for maximum comfort and sustainability in modern settings. With a stellar SEER2 rating of 21.2, this system offers energy-saving operation tailored to larger applications. Air quality is prioritized with an activated carbon filter, while the GoldFin Anti-Corrosive Coating ensures durability over time. The Anti Cold Air feature eliminates drafts during heating, delivering seamless warmth to any space. Designed for even air distribution, its 360° Air Flow Panel and Omni-Directional Airflow ensure complete coverage. Integrated safety technologies like Refrigerant Leakage Detection, Humidity Sensor, and Self Diagnosis Function provide reliable performance under all conditions. The built-in pump quietly manages condensate water, boasting a lift capacity of up to 20.9 inches. Crafted with TU1 Copper Tubes, this unit offers exceptional heat transfer and lasting durability. The Fresh Air Intake feature enhances indoor air quality, creating a healthier environment for living or working. Simplified installation is made possible with the compact electric box design. Control options include the Built-in Smart Kit accessible via the C&H App, Remote Control, and Wall Thermostat, providing effortless adjustments. Engineered to deliver powerful cooling and heating solutions, the 36K Btu Ceiling Cassette PRO is the epitome of innovation for larger spaces.
| CH | + U-230VO |
| Indoor Model | CH-RSH36LCCT |
| Power supply | 208-230V, 1Ph, 60Hz V, Ph, Hz |
| Communication wiring | AWG 14-3 |
| Cooling Capacity | 36,600 (4,900~38,000) Btu/h |
| Input | 250 W |
| Rated current | 14.1 (4~18.2) A |
| EER/EER2 | 12 Btu/w |
| SEER/SEER2 | 21.2 Btu/w |
| Heating at 47 °F Capacity | 37,000 (11,400~44,600) Btu/h |
| COP | 3.43 W/W |
| HSPF4/HSPF2-4 | 10.6 |
| HSPF5/HSPF2-5 | 8.8 |
| Indoor fan motor | 1 Qty |
| Indoor air flow (Turbo/Hi/Med/Lo) (No duct) | 1,041.8 / 947.6 / 853.5 / 753.4 CFM |
| ESP (range) | / ln.wg. |
| Indoor noise level (Hi/Med/Lo) | 52/47.5/40 dB(A) |
| Dehumidification | 9.09 Pnt/H |

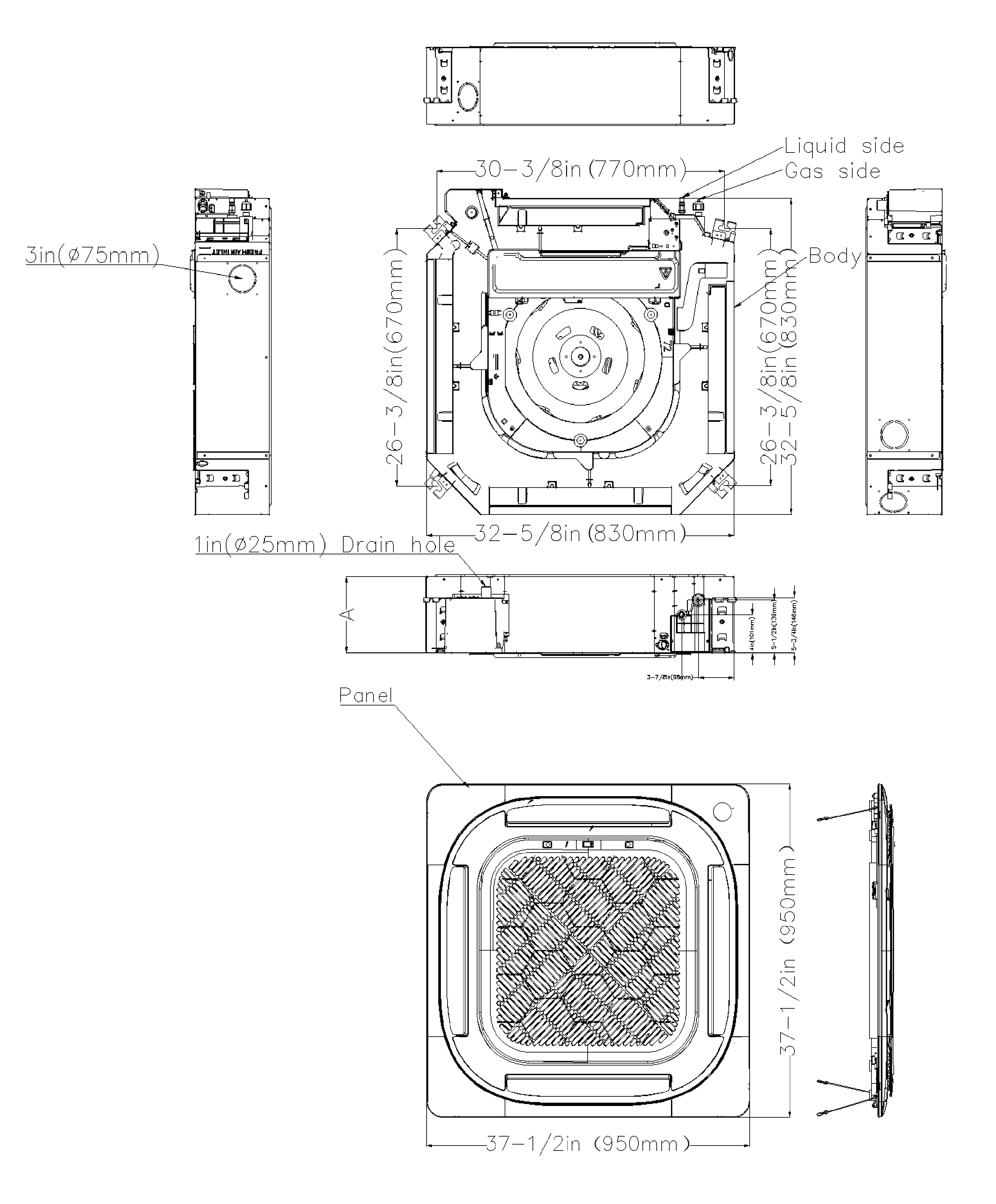

| Indoor unit Dimensions (WxDxH) | 32.68 x 32.68 x 9.65 inch |
| Packing (WxDxH) | 45.08 x 19.68 x 42.52 inch |
| Net/Gross weight | 206.57/237.44 lbs |
| Drainage water pipe diameter | 1" inch |
| Refrigerant piping (Liquid side/Gas side) | 3/8"/3/4" inch |
| Design pressure | 550/340 PSIG |
| Controller | wire controller + remote controller available |
| Room temperature Cooling | 60~90 F |
| Heating | -22~75 F |
| Outdoor Model | CH-RHP36LCU-230VO |
| Min. circuit ampacity | 38 A |
| Max. fuse | 40 A |
| Compressor Model | EKPQ420D1UM |
| Type | TWIN-ROTARY |
| Brand | GMCC |
| Capacity | 40,940 Btu/h |
| Rated current (RLA) | 24.5 A |
| Refrigerant oil | VG75 49.4 oz |
| Outdoor fan motor Qty | 1 |
| RLA | 2.1 A |
| Speed | 750/650/550 r/min |
| Outdoor air flow (Max) | 3,001.9 CFM |
| Outdoor noise level (Max) | 64.5 dB(A) |
| Throttle type | EXV+Throttle valve |
| Outdoor unit Dimensions (WxDxH) | 38.58 x 16.34 x 38.39 inch |
| Refrigerant Type | R454B |
| Precharge | 25 ft |
| Additional charge for 1/4 inch liquid pipe | / oz |
| Additional charge for 3/8 inch liquid pipe | 0.32 oz |
| Refrigerant piping Liquid side/Gas side | 3/8"/3/4" inch |
| Max. pipe length | 246 ft |
| Max. difference in level | 98.4 ft |
| Ambient temperature Cooling | -22 ~ 122 F |
