Cooper & Hunter
Model: CH-RS24MDT-HS
BTU
24,000
SEER2
19
Voltage
208-230V, 1Ph, 60Hz V, Ph, Hz
Refrigerant
R454B
Outdoor: CH-RHP24-230VO

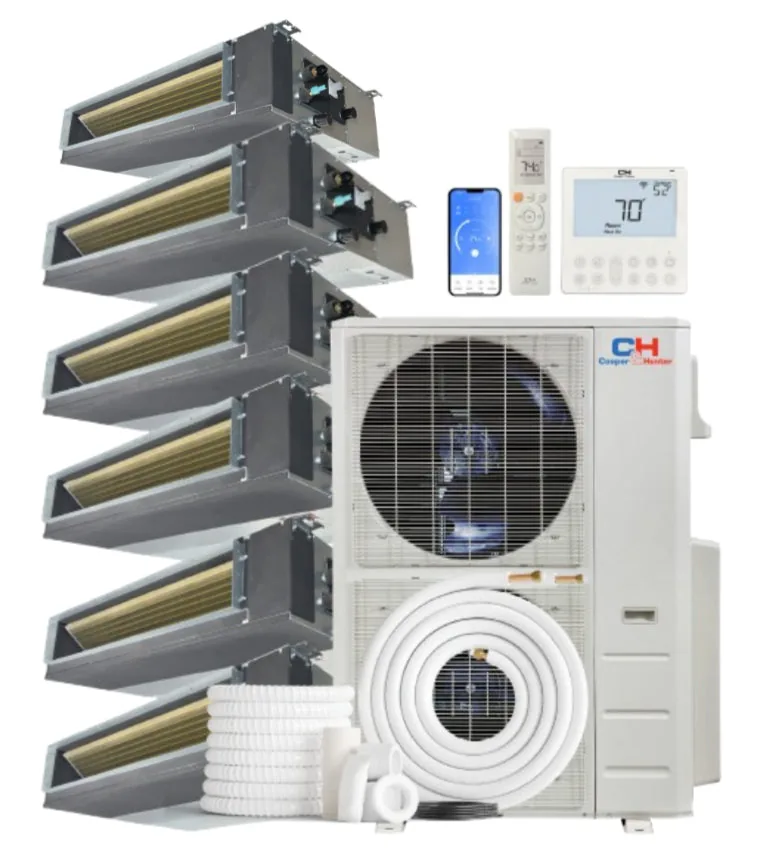

Cooper & Hunter 6-Zone Mini Split AC & Heat Pump -- 60000 (5.0 Ton), Slim Duct Units (9K+9K+9K+9K+12K+24K BTU), Inverter Technology, 230V, Heating & Cooling - R454B
Summary
Bring flexible, concealed comfort to your space with the new 6-Zone R454B Slim-Duct Mini Split System by Cooper & Hunter. A 60,000 BTU condenser powers slim-profile duct units that disappear into ceilings or soffits while delivering whisper-quiet performance down to -13 F. Slim-Duct air handlers use TU1 copper tubing, medium/high static pressure blowers, built-in Wi-Fi smart kits, and R454B refrigerant for reduced GWP without sacrificing efficiency (up to 22 SEER2).
Included in Your Order
Cooper & Hunter Slim-Duct Mini Split System
Outdoor Unit: 60,000 BTU (1 pc) - Model: CH-R60MES-230VO
Indoor Units:
- 6,000‑12,000 BTU (5 pcs) - Model: CH-RS06-12MDT- MS
- 24,000 BTU (1 pcs) - Model: CH-RS24MDT-HS
Capacity Selection (Dip-Switch ENC1)
Set ENC1 from "0" to "1" → 6,000 BTU
Set ENC1 from "0" to "2" → 9,000 BTU
Set ENC1 from "0" to "3" → 12,000 BTU
Installation-Kit options (No Kit / 16 ft / 25 ft / 50 ft) (INSTALLATION KIT SIZE MUST BE SELECTED)
Wireless Remote Controls (6 remotes)
Built-in Smart-Kit & C&H App control
Wall Thermostat
Installation & User Manuals
Manufacturer Warranty
Key Features
6-zone independent temperature control
Medium / High static pressure (Slim-Duct)
High-efficiency performance (22 SEER2)
Quiet operation (as low as 65 dB)
Reliable heating down to -13 F ambient
TU1 Copper Heat Exchangers
Built-in Wi-Fi & app control
Turbo mode for rapid conditioning
2025 model with R454B refrigerant
Complete Technical Specifications

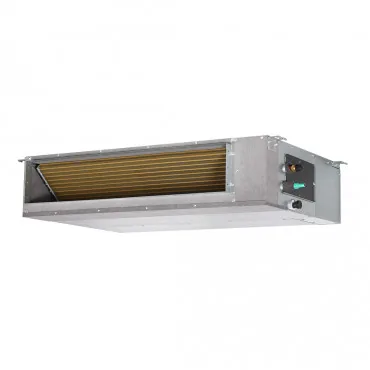

Indoor Unit: CH-RS06-12MDT- MS (6,000‑12,000 BTU) x5
Refrigerant type R454B
System type Single Zone
Filter dimensions (WxD) (inch) 23.3x7.24
BTU Rated 12,000
Power source 208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day) 2.66
Voltage range (V) 187-253
| Indoor Model | CH-RS24MDT-HS |
| Power supply | 208-230V, 1Ph, 60Hz V, Ph, Hz |
| Communication wiring | AWG 14-4 |
| Cooling Capacity | 24,000 (5,000~28,000) Btu/h |
| Input | 120 W |
| Rated current | 8.8 (2.4~11) A |
| EER/EER2 | 12 Btu/w |
| SEER/SEER2 | 19 Btu/w |
| Heating at 47 °F Capacity | 26,000 (7,300~31,400) Btu/h |
| COP | 3.81 W/W |
| HSPF4/HSPF2-4 | 11.7 |
| HSPF5/HSPF2-5 | 9.3 |
| Indoor fan motor | 1 Qty |
| Indoor air flow (Turbo/Hi/Med/Lo) (No duct) | 853.5 / 706.3 / 618 / 500.3 CFM |
| ESP (range) | 0-0.8 ln.wg. |
| Indoor noise level (Hi/Med/Lo) | 40/37/35 dB(A) |
| Dehumidification | 4.29 Pnt/H |

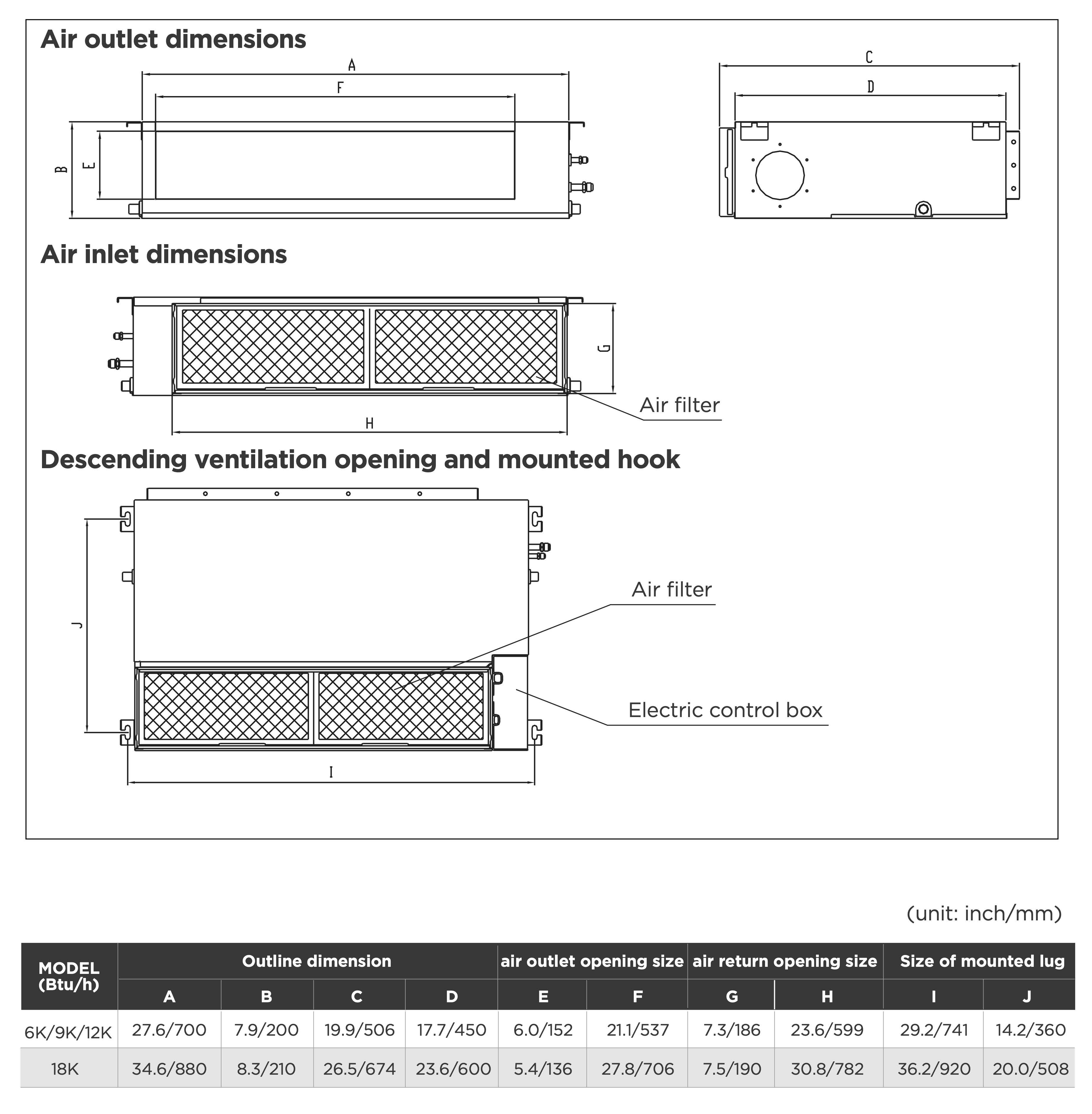

| Indoor unit Dimensions (WxDxH) | 34.65 x 26.54 x 8.27 inch |
| Packing (WxDxH) | 42.91 x 19.68 x 34.84 inch |
| Net/Gross weight | 130.29/141.31 inch |
| Drainage water pipe diameter | 1" inch |
| Refrigerant piping (Liquid side/Gas side) | 3/8"/5/8" inch |
| Design pressure | 550/340 PSIG |
| Controller | wire controller + remote controller available |
| Room temperature Cooling | 60~90 F |
| Heating | -22~75 F |
| Outdoor Model | CH-RHP24-230VO |
| Min. circuit ampacity | 24.9 A |
| Max. fuse | 25 A |
| Compressor Model | KTM240D46UKT2 |
| Type | ROTARY |
| Brand | GMCC |
| Capacity | 25,930 Btu/h |
| Rated current (RLA) | 15 A |
| Refrigerant oil | VG74 21 oz |
| Outdoor fan motor Qty | 1 |
| RLA | 1.3 A |
| Speed | 950/800/500 r/min |
| Outdoor air flow (Max) | 2,236.7 CFM |
| Outdoor noise level (Max) | 61 dB(A) |
| Throttle type | EXV+Throttle valve |
| Outdoor unit Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 inch |
| Refrigerant Type | R454B |
| Precharge | 25 ft |
| Additional charge for 3/8 inch liquid pipe | 0.32 oz |
| Refrigerant piping Liquid side/Gas side | 3/8"/5/8" inch |
| Max. pipe length | 164 ft |
| Max. difference in level | 82 ft |
| Ambient temperature Cooling | -22 ~ 122 F |
