Cooper & Hunter
Model: CH-REL30-230VO
BTU
30,000
SEER2
20.5
Voltage
208-230V, 1Ph, 60Hz V, Ph, Hz
Refrigerant
R454B
Indoor: CH-PRO30MASTWM-230VI

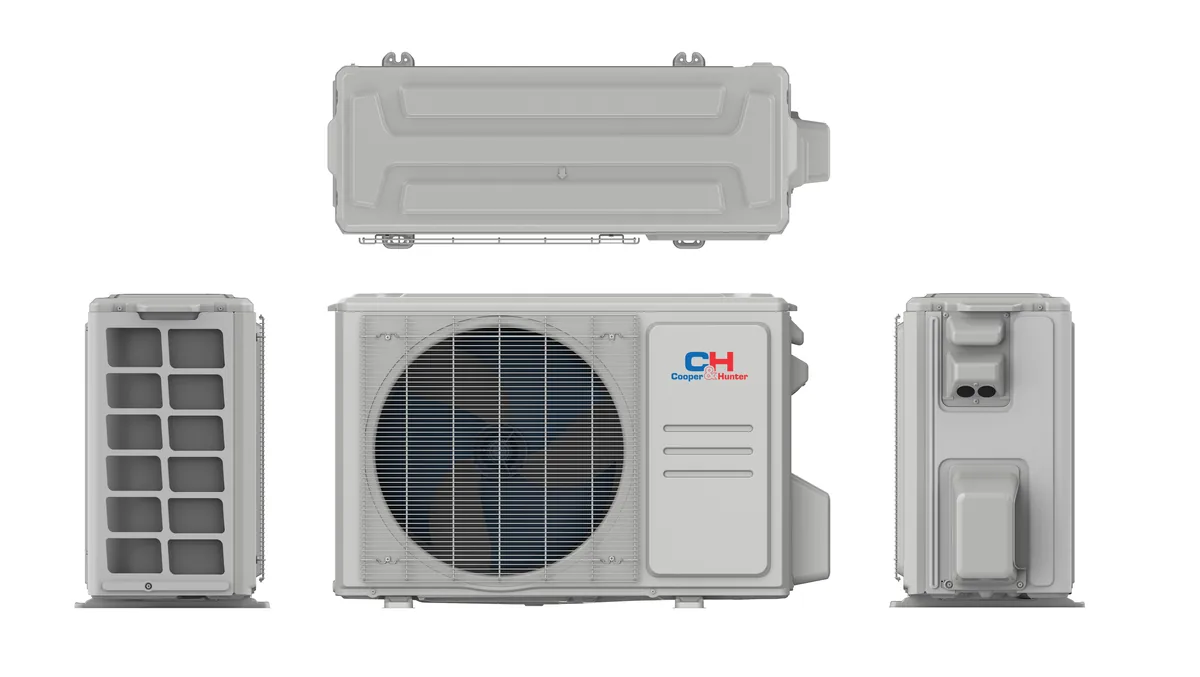

Cooper&Hunter's 30K BTU, 230V Regular Single-Zone Outdoor Unit is an exceptional choice for efficient heating and cooling in larger residential spaces. Utilizing advanced inverter technology, this unit adapts its compressor speed to match the specific demands of your climate control needs. This precise operation ensures optimal temperature regulation, improved system performance, and lower energy consumption, making it a smart and efficient solution. A notable feature of this unit is its use of R454B refrigerant, which provides an environmentally conscious alternative with a reduced Global Warming Potential (GWP) compared to standard refrigerants. This reinforces Cooper&Hunter's commitment to sustainability and greener technologies. Built with durability in mind, the 30K BTU unit is designed to handle a range of weather conditions while maintaining consistent and dependable operation. With SEER2 ratings of up to 22.3 it achieves excellent energy efficiency, helping reduce utility costs. Its quiet performance and robust build make it a reliable and eco-friendly choice for year-round comfort.
| Indoor Model | CH-PRO30MASTWM-230VI |
| Power supply | 208-230V, 1Ph, 60Hz V, Ph, Hz |
| Communication wiring | AWG 14-4 |
| Cooling Capacity | 30,000 (6,500~32,800) Btu/h |
| Input | 120 W |
| Rated current | 13.1 (4.1~13.1) A |
| EER/EER2 | 12 Btu/w |
| SEER/SEER2 | 20.5 Btu/w |
| Heating at 47 °F Capacity | 30,000(12,600~31,400) Btu/h |
| COP | 3.08 W/W |
| HSPF4/HSPF2-4 | 9.5 |
| HSPF5/HSPF2-5 | 7.2 |
| Indoor fan motor | 1 Qty |
| Indoor air flow (Turbo/Hi/Med/Lo) (No duct) | 882.9 / 635.7 / 506.2 / 382.6 CFM |
| Indoor noise level (Hi/Med/Lo) | 45.5/40/30.5 dB(A) |
| Dehumidification | 8.45 Pnt/H |
| Indoor unit Dimensions (WxDxH) | 47.13 x 11.02 x 14.61 inch |
| Packing (WxDxH) | 42.91 x 19.68 x 34.84 inch |
| Net/Gross weight | 142.86/154.54 inch |
| Drainage water pipe diameter | 5/8" inch |
| Refrigerant piping (Liquid side/Gas side) | 3/8"/5/8" inch |
| Design pressure | 550/340 PSIG |
| Controller | wire controller + remote controller available |
| Room temperature Cooling | 60~90 F |
| Heating | -13~75 F |
| Outdoor Model | CH-REL30-230VO |
| Min. circuit ampacity | 28 A |
| Max. fuse | 30 A |
| Compressor Model | KTF250D22UMT |
| Type | ROTARY |
| Brand | GMCC |
| Capacity | 27,620 Btu/h |
| Rated current (RLA) | 17.5 A |
| Refrigerant oil | VG74 22.7 oz |
| Outdoor fan motor Qty | 1 |
| RLA | 1.3 A |
| Speed | 900/700/500 r/min |
| Outdoor air flow (Max) | 2,235.3 CFM |
| Outdoor noise level (Max) | 61 dB(A) |
| Throttle type | EXV+Capillary |
| Outdoor unit Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 inch |
| Refrigerant Type | R454B |
| Precharge | 25 ft |
| Additional charge for 1/4 inch liquid pipe | / oz |
| Additional charge for 3/8 inch liquid pipe | 0.32 oz |
| Refrigerant piping Liquid side/Gas side | 3/8"/5/8" inch |
| Max. pipe length | 164 ft |
| Max. difference in level | 82 ft |
| Ambient temperature Cooling | -13 ~ 122 F |
