Cooper & Hunter
Model: CH-R36LCU-230VO
BTU
36,000
SEER2
20
Voltage
208-230V, 1Ph, 60Hz V, Ph, Hz
Refrigerant
R454B
Indoor: CH-RSH36LCFC
Cooper&Hunter's 36K BTU, 230V Single-Zone Outdoor Unit is a powerful and efficient option designed to meet the heating and cooling demands of both large residential and light commercial spaces. By leveraging advanced inverter technology, the unit optimizes compressor activity to precisely match the heating or cooling requirements of the environment. This approach significantly boosts energy efficiency while maintaining consistent performance and delivering substantial savings on operational costs. A forward-thinking feature of this model is its utilization of R454B refrigerant, a greener alternative with a lower Global Warming Potential (GWP) than traditional refrigerants. This eco-friendly choice underscores Cooper&Hunter's commitment to sustainability and reduced environmental impact. Durably constructed to withstand a wide range of weather conditions, the unit ensures years of dependable operation. Its SEER2 rating of up to 19.8 highlights its impressive energy-saving capabilities. Quiet performance combined with robust functionality makes this unit a versatile and reliable solution for diverse climate control needs, ideal for residential and commercial applications alike.
| Indoor Model | CH-RSH36LCFC |
| Power supply | 208-230V, 1Ph, 60Hz V, Ph, Hz |
| Communication wiring | AWG 14-3 |
| Cooling Capacity | 36,000 (7,300~39,500) Btu/h |
| Input | 120 w |
| Rated current | 14.3 (4.7~15.3) A |
| Heating at 47 °F Capacity | 38,000 (14,100~40,400) Btu/h |
| COP | 3.34 W/W |
| HSPF4/HSPF2-4 | 10 |
| HSPF5/HSPF2-5 | 7.7 |
| Indoor fan motor | 2 Qty |
| Indoor air flow (Turbo/Hi/Med/Lo) (No duct) | 1,224.3 / 1,088.9 / 988.8 / 765.2 CFM |
| ESP (range) | / ln.wg. |
| Indoor noise level (Hi/Med/Lo) | 49/44.5/37 dB(A) |
| Dehumidification | 6.83 L/H |

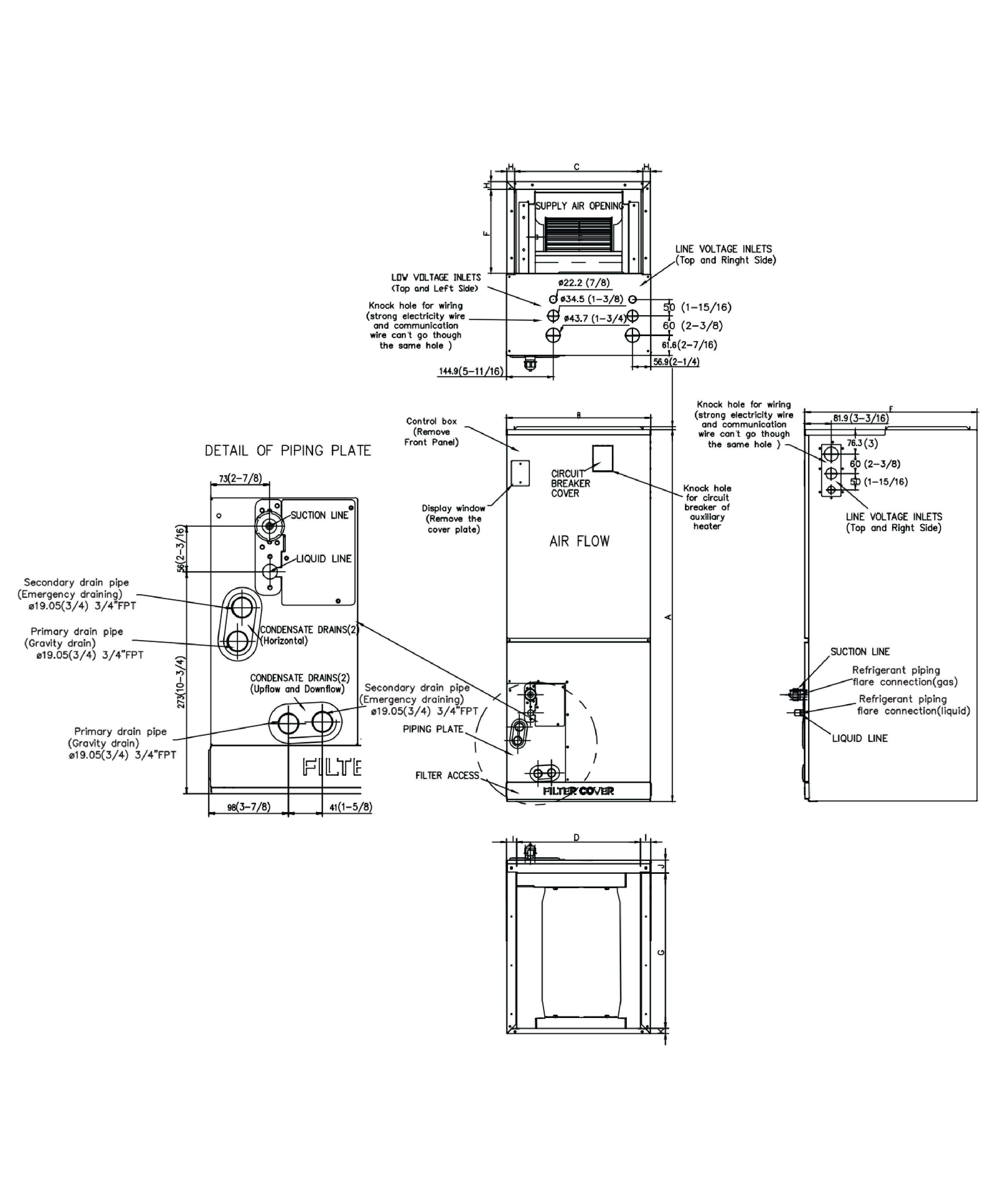

| Indoor unit Dimensions (WxDxH) | 64.96 x 26.57 x 9.25 inch |
| Packing (WxDxH) | 42.91 x 19.68 x 34.84 inch |
| Net/Gross weight | 152.34/162.48 inch |
| Drainage water pipe diameter | 1" inch |
| Refrigerant piping (Liquid side/Gas side) | 3/8"/3/4" inch |
| Design pressure | 550/340 PSIG |
| Controller | remote controller |
| Room temperature Cooling | 60~90 F |
| Heating | -13~75 F |
| Outdoor Model | CH-R36LCU-230VO |
| Min. circuit ampacity | 33 A |
| Max. fuse | 35 A |
| Compressor Model | KTF310D43UMT |
| Type | ROTARY |
| Brand | GMCC |
| Capacity | 34.15 Btu/h |
| Rated current (RLA) | 21.5 A |
| Refrigerant oil | VG74 33.8 oz |
| Outdoor fan motor Qty | 1 |
| RLA | 1.4 A |
| Speed | 950/800/500 r/min |
| Outdoor air flow (Max) | 2,413.3 CFM |
| Outdoor noise level (Max) | 64 dB(A) |
| Throttle type | EXV+Throttle valve |
| Outdoor unit Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 inch |
| Refrigerant Type | R454B |
| Precharge | 25 ft |
| Additional charge for 1/4 inch liquid pipe | / oz |
| Additional charge for 3/8 inch liquid pipe | 0.32 oz |
| Refrigerant piping Liquid side/Gas side | 3/8"/3/4" inch |
| Max. pipe length | 246 ft |
| Max. difference in level | 98.4 ft |
| Ambient temperature Cooling | -13 ~ 122 F |
