Cooper & Hunter | Mia NY Series
Model: CH-RLS18MIA-230VO
BTU
18,000
SEER2
19.2
Voltage
208-230V, 1Ph, 60Hz V, Ph, Hz
Refrigerant
R454B
Indoor: CH-RLS18MIA-230VI
Cooper & Hunter's Mia Series offers a more affordable mini split option with a sleek matte indoor wall mount and high SEER. Mia series coils are protected by GoldFin anti-corrosive coating. Inverter technology makes these units energy-efficient while WiFi ready wall mounts offer convenient control for consumers.
| Indoor Model | CH-RLS18MIA-230VI |
| Power supply | 208-230V, 1Ph, 60Hz V, Ph, Hz |
| Communication wiring | AWG 14-4 |
| Cooling Capacity | 18,000 (4,100~19,000) Btu/h |
| Input | 34 w |
| Rated current | 8.1 (2.1~8.2) A |
| EER/EER2 | 10.8 Btu/w |
| SEER/SEER2 | 19.2 Btu/w |
| Heating at 47 °F Capacity | 18,800 (6,200~20,200) Btu/h |
| COP | 3.06 W/W |
| HSPF4/HSPF2-4 | 9.6 |
| HSPF5/HSPF2-5 | 7.5 |
| Indoor fan motor | 1 Qty |
| Indoor air flow (Turbo/Hi/Med/Lo) (No duct) | 429.7 / 388.5 / 259 / 217.8 CFM |
| ESP (range) | / ln.wg. |
| Indoor noise level (Hi/Med/Lo) | 45/36/24 dB(A) |
| Dehumidification | 5.29 L/H |

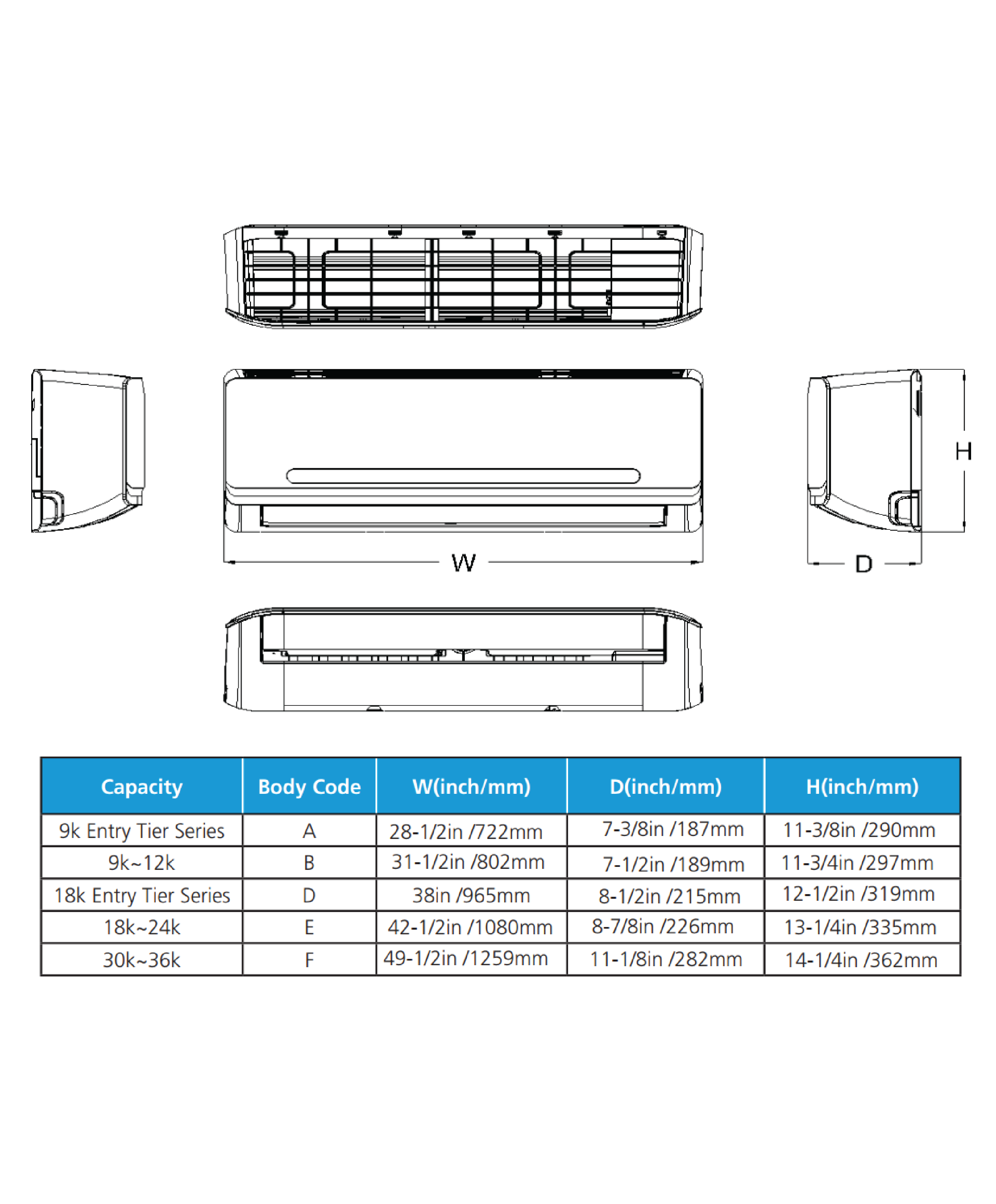

| Indoor unit Dimensions (WxDxH) | 37.99 x 8.46 x 12.56 inch |
| Packing (WxDxH) | 37.00 x 16.14 x 23.82 inch |
| Net/Gross weight | 72.31/78.48 inch |
| Drainage water pipe diameter | 5/8" inch |
| Refrigerant piping (Liquid side/Gas side) | 1/4"/1/2" inch |
| Design pressure | 550/340 PSIG |
| Controller | remote controller |
| Room temperature Cooling | 60~90 F |
| Heating | 5 ~ 75 F |

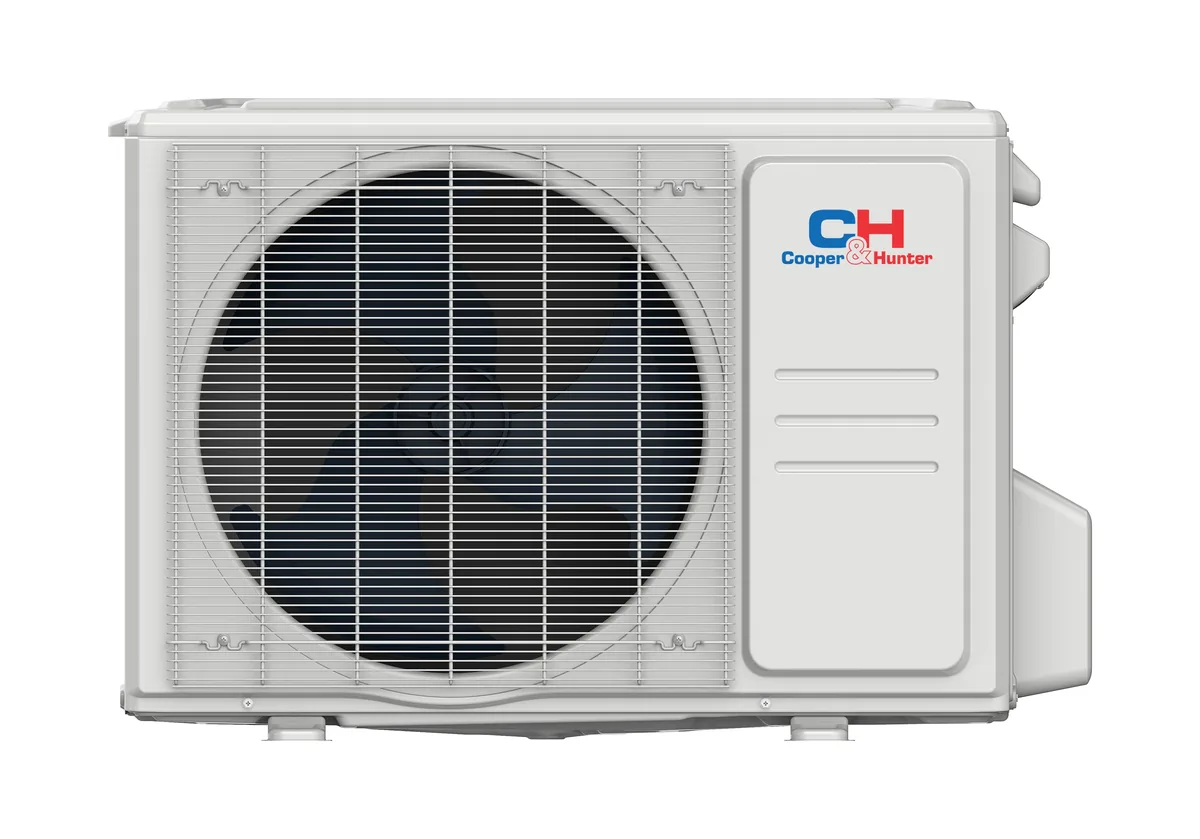

| Outdoor Model | CH-RLS18MIA-230VO |
| Min. circuit ampacity | 15 A |
| Max. fuse | 20 A |
| Compressor Model | KSN140D21UFZ |
| Type | ROTARY |
| Brand | GMCC |
| Capacity | 14,960 Btu/h |
| Rated current (RLA) | 7.5 A |
| Refrigerant oil | VG74 14.9 oz |
| Outdoor fan motor Qty | 1 |
| RLA | 0.4 A |
| Speed | 840/650 r/min |
| Outdoor air flow (Max) | 1,235.3 CFM |
| Outdoor noise level (Max) | 56 dB(A) |
| Throttle type | Capillary |
| Outdoor unit Dimensions (WxDxH) | 31.69 x 12.99 x 21.81 inch |
| Refrigerant Type | R454B |
| Precharge | 25 ft |
| Additional charge for 1/4 inch liquid pipe | 0.16 oz |
| Additional charge for 3/8 inch liquid pipe | / oz |
| Refrigerant piping Liquid side/Gas side | 1/4"/1/2" inch |
| Max. pipe length | 98.4 ft |
| Max. difference in level | 65.6 ft |
| Ambient temperature Cooling | 5 ~ 122 F |
