OLMO
Model: OS-RSR36-230VO
BTU
36,000
SEER2
20
Voltage
208-230V/60Hz

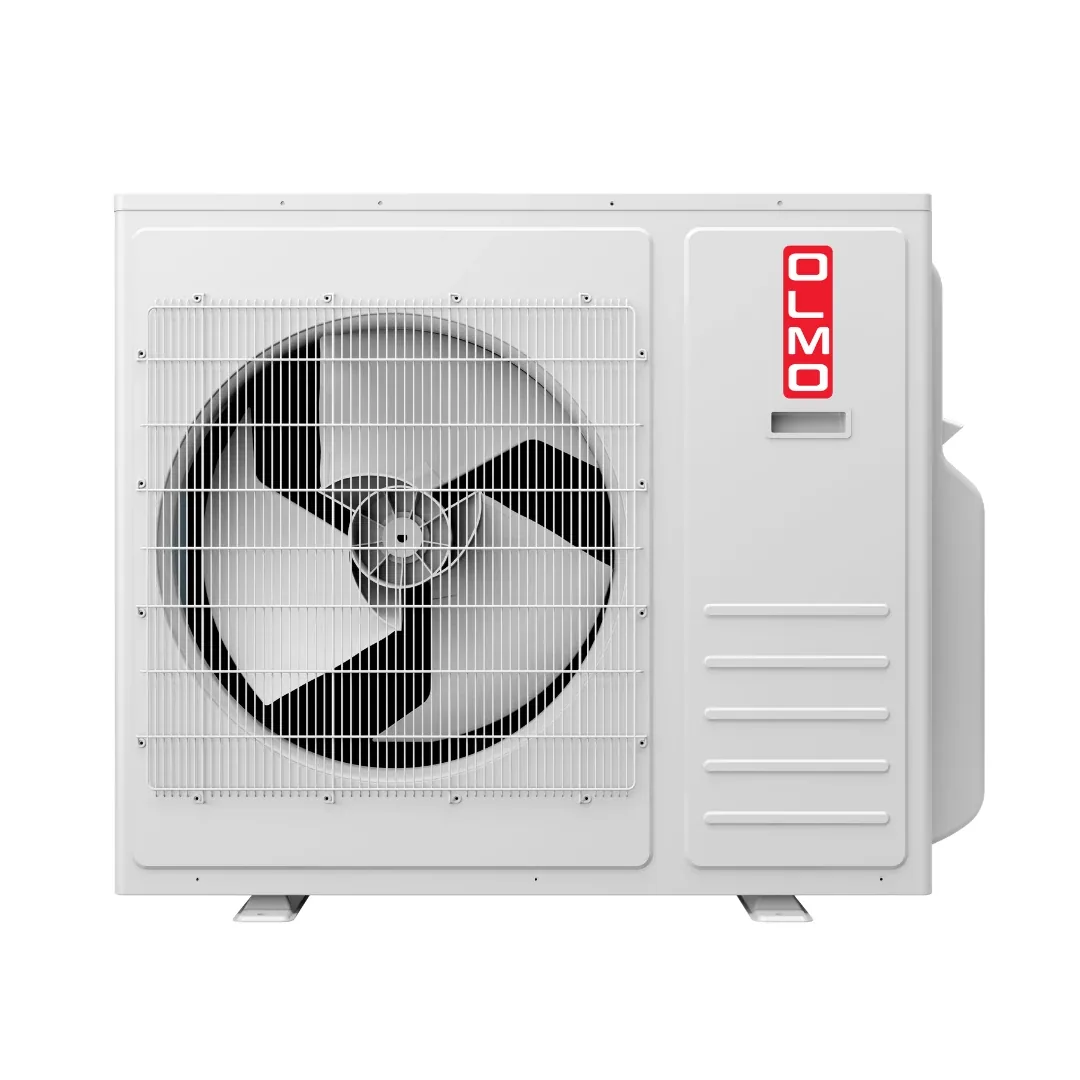

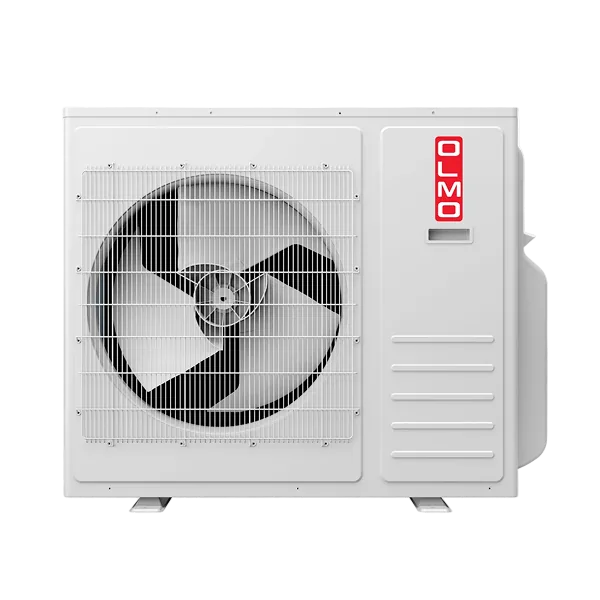

Indoor: OS-R36SRW-230VI
The Olmo Sierra Single-Zone with R32 (230V Unit, With 36.000 Btu and Up 20 SEER2) brings incredible features such as Smart Connect, allowing you to control the unit from anywhere via your smartphone app. Enjoy the convenience of Self Clean Mode, Turbo Mode, Multiple Fan Speeds, Remote Control, and ECO Mode. This unit uses the R32 Refrigerant, making it more eco-friendly and compliant with the A2L refrigerant transition.
| SEER2 up to | 19 |
| Refrigerant type | R410A |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/5/8" |
| Packing dimensions (WxDxH) | 40.47x18.70x33.86 |
| Max. pipe length (ft) | 30/98 |
| HSPF2-5 | 7 |
| HSPF2-4 | 8.5 |
| EER2 up to | 9 |
| BTU Rated | 36,000 |
| Unit Net/Gross weight | 112.5/123.5 |
| Unit dimensions (W*H*D) | 35.83x16.54x31.50 |
| Refrigerant precharge | 25 |
| Power source | 208-230V, 1Ph, 60Hz |
| Outdoor Noise Level | 63 |
| Outdoor Air Flow | 2350 |
| Minimum circuit ampacity | 23 |
| Max.fuse | 35 |
| Max height difference between Indoor and Outdoor unit | 20/65 |
| Heating Capacity at 47°F | 36,000 |
| COP | 3.01 |
| Ambient temperature - Heating | -4~86 |
| Ambient temperature - Cooling | 5~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
