Cooper & Hunter | Olivia Series
Model: CH-B18MOLVWM-230VI
BTU
18,000
SEER2
22
EER2
13.5
Voltage
208-230V/60Hz
Noise Level (dB)
46/40/25
Airflow (CFM)
760.59/530.59/458.82/382.35
Outdoor: CH-RHP18-230VO
Cooper&Hunter Multi-Zone 18,000 BTU 230V Olivia Midnight Series Black Indoor Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System Up To 26.4 SEER2 with Wi-Fi and Optional Installation Kit, High Wall, Wall AC Unit CH-B18MOLVWM-230VI
Summary
The option to choose both, aesthetics and functionality is brought by Cooper&Hunter's Olivia Midnight indoor wall-mounted mini split series. The sleek black panel design offers an alternative option to the standard, white-colored units. The Olivia Midnight series works as a single or multi-zone mini split unit. Auto-swing horizontal louvers maintain an even airflow throughout the room while some additional notable features include "Follow Me" mode, "Sleep" mode, "Timer" options, and 46°F Freeze Protection. Olivia Midnight models can be controlled with the included C&H remote control, or via any smart device when used in conjunction with Cooper&Hunter's optional Smart Kit and the C&H Remote app. This series of mini splits is available in 6K, 9K, 12K, 18K, and 24K Btu/h models and can be paired with Regular or Hyper Heat Pump Outdoor Units. The Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings granting them a rating of up to a 26.4 SEER2. These systems can heat and cool your home or office effectively down to -13°F for Standard units and even down to -22°F for Hyper units.
Important

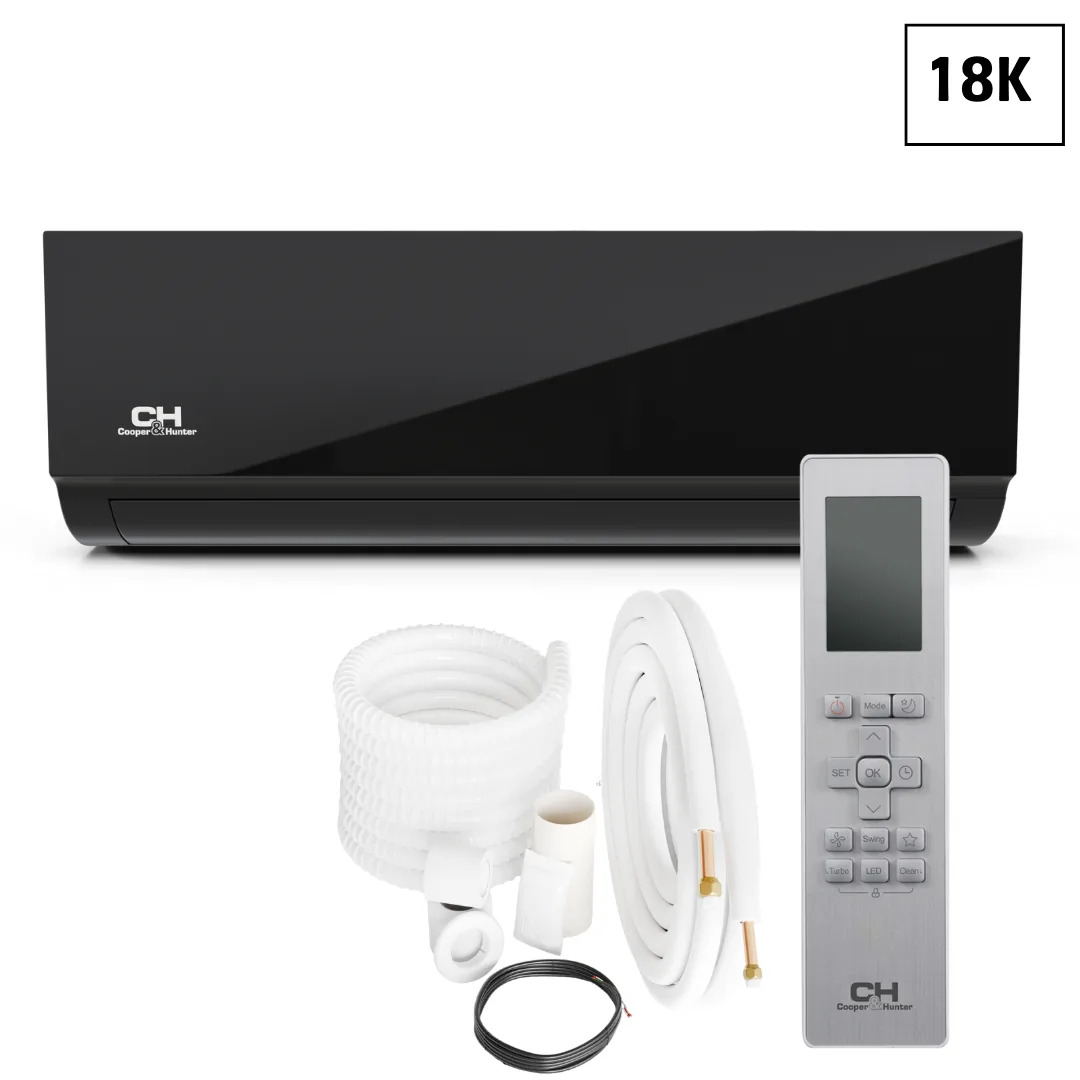

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.
| System type | Single/Multi-zone unit |
| BTU Rated | 18,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 2.85 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 45.47x16.34x12.40 |
| Controller | RG10K-exclusive remote |
| Refrigerant piping Liquid/Gas side (inch) | 1/4" - 1/2'' |
| EER2 | 13.5 |
| SEER2 | 24 |
| Unit Net/Gross weight | 29.54/37.48 |

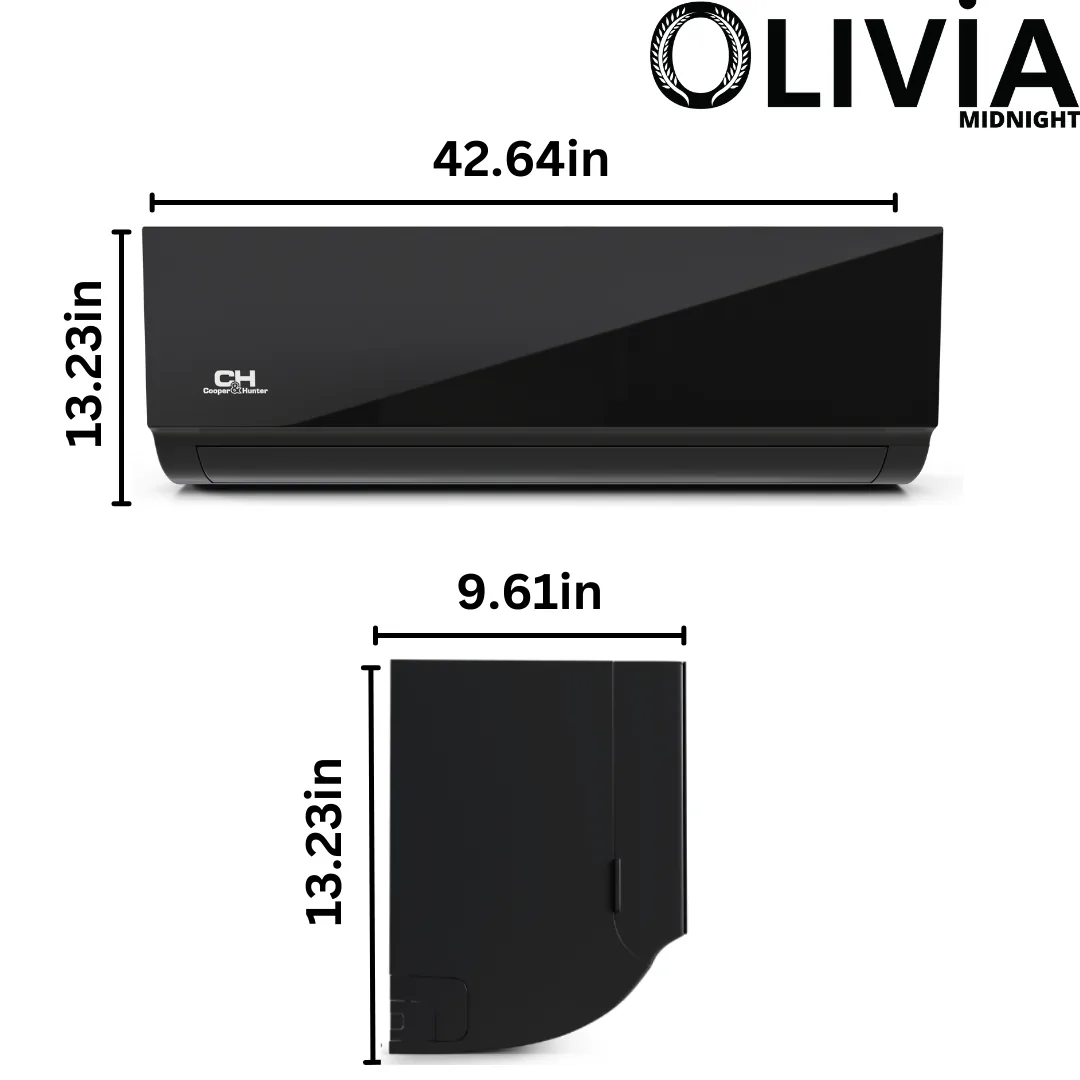

| Unit dimensions (W*H*D) | 42.64x9.61x13.23 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 46/40/25 |
| Indoor Air Flow | 760.59/530.59/458.82/382.35 |
| Drainage water pipe diameter | 5/8" |
| Dual (2) Zone: | 19,000 BTU |
| Dual/Tri (2 or 3) Zone: | 28,000 BTU |
| Dual/Tri/Quad (2, 3 or 4) Zone: | 36,000 BTU |
| Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone: | 55,000 BTU |
