Cooper & Hunter
Model: CH-RSH09MMC
BTU
9,000
SEER2
26
EER2
10
Voltage
208-230V/60Hz
Refrigerant
R454B
Noise Level (dB)
43.5/40.5/30.5
Airflow (CFM)
500.3 / 441.4 / 382.6 / 323.7
Outdoor: CH-RHP09-230VO
Cooper & Hunter 3-Zone Mini Split AC & Heat Pump -- 60000 (5.0 Ton), Mini Floor Console Units (9K+12K+18K BTU), Inverter Technology, 230V, Heating & Cooling - R454B
Summary
Enjoy targeted, freestanding comfort with the new 3-Zone R454B Mini Floor Console Mini Split System by Cooper & Hunter. A 60,000 BTU outdoor condenser powers sleek floor consoles that tuck neatly under windows or along walls while delivering whisper-quiet heating and cooling down to -13 F. Consoles feature twin-discharge technology (65% larger upper outlet & 94% wider lower outlet) for even air distribution, built-in Wi-Fi smart kits, and low-GWP R454B refrigerant for efficiency up to 22 SEER2.
Included in Your Order
Cooper & Hunter Mini Floor Console Mini Split System Outdoor Unit: 60,000 BTU (1 pc) - Model CH-R60MES-230VO
Indoor Units:
- 9,000 BTU (1 pcs) - Model: CH-RSH09MMC
- 12,000 BTU (1 pcs) - Model: CH-RSH12MMC
- 16,000 BTU (1 pcs) - Model: CH-RSH16MMC
Installation-Kit options (No Kit / 16 ft / 25 ft / 50 ft) (INSTALLATION KIT SIZE MUST BE SELECTED)
Wireless Remote Controls (3 remotes)
Built-in Smart-Kit & C&H App control
Wall Thermostat
Installation & User Manuals
Manufacturer Warranty
Key Features
3-zone independent temperature control

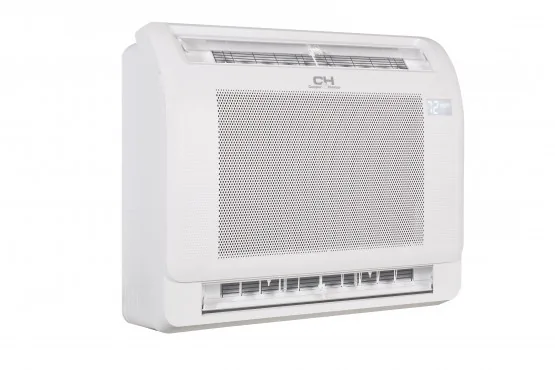

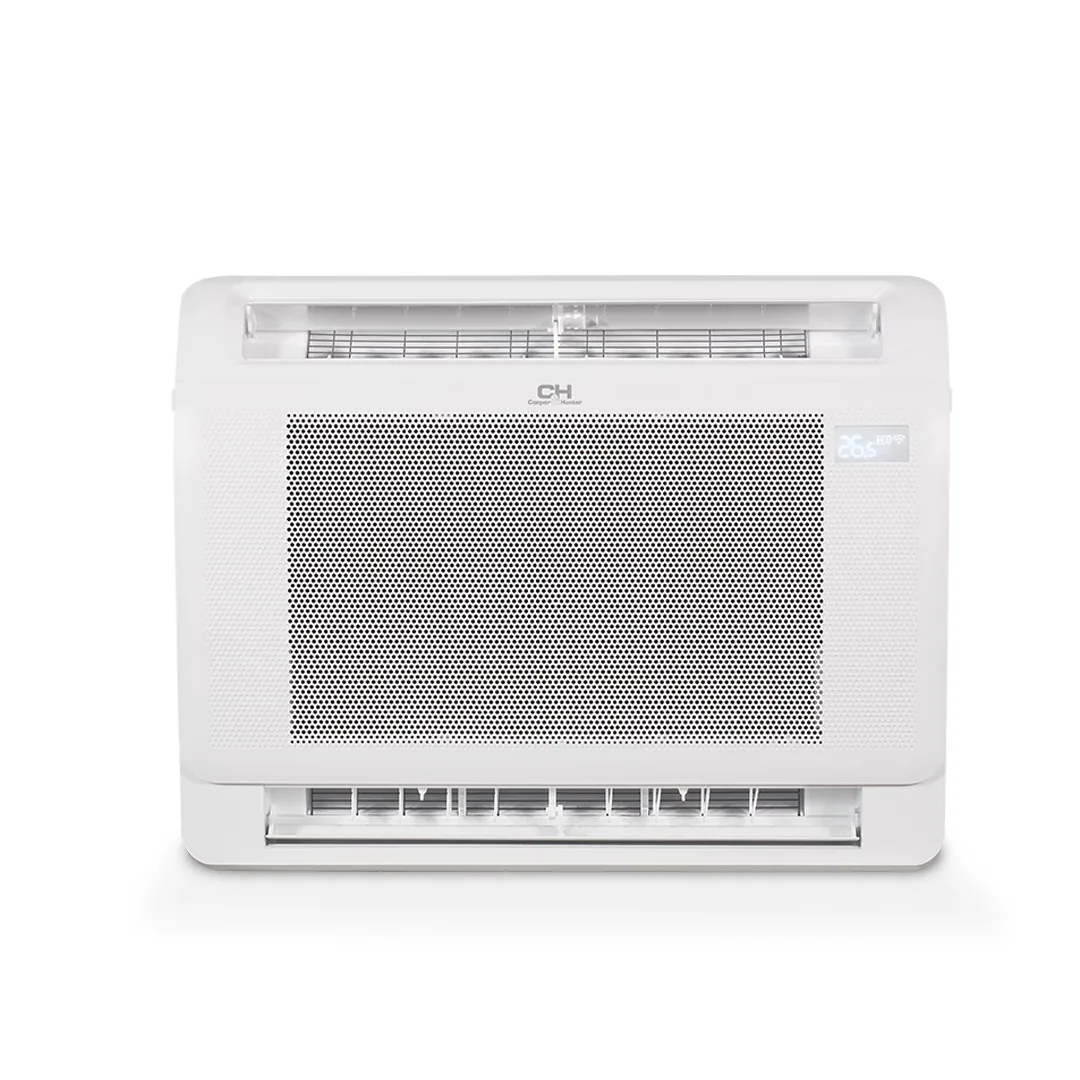

Mini Floor Console - compact, under-window design
Twin-discharge: 65% larger upper & 94% wider lower outlet
Up to 22 SEER2 efficiency (R454B refrigerant)
Quiet operation (as low as 65 dB)
Reliable heating down to -13 F ambient
Refrigerant & humidity sensors for optimal comfort
Multiple fan-speed settings & Turbo mode
TU1 Copper heat-exchangers for long life
2025 model - Hyper or Regular operation selectable
Complete Technical Specifications
Indoor Unit: CH-RSH09MMC (9,000 BTU) x1
Refrigerant type R454B
System type Single Zone
BTU Rated 9
Power source 208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day) 1.71
Voltage range (V) 187-253
Packing dimensions (
| Refrigerant type | R454B |
| System type | Multi-zone unit |
| BTU Rated | 16 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 10.57 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 43.11 x 19.49 x 58.27 |
| Controller | remote controller |
| Refrigerant piping Liquid/Gas side (inch) | 6x1/4" - 4x3/8"+2x1/2" |
| EER2 | 10 |
| SEER2 | 22 |
| Unit Net/Gross weight | 237.88/270.28 |
| Unit dimensions (W*H*D) | 37.48 x 16.34 x 52.48 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 36 |
| Max.fuse | 40 |
| Indoor Noise Level H/M/L | 43.5/40.5/30.5 |
| Indoor Air Flow | 500.3 / 441.4 / 382.6 / 323.7 |
| ESP Range | / |
| Drainage water pipe diameter | 5/8" |
| HSPF2-5 | 7.4 |
| HSPF2-4 | 9.5 |
| Cooling capacity (Min/Max) (BTU/h) | 60,000(19,000~62,000) |
| Refrigerant precharge | 150 |
| Outdoor Noise Level | 65 |
| Outdoor Air Flow | 4,502.8 |
| Max height difference between Indoor and Outdoor unit | 49.2 |
| Heating capacity (Min/Max) (Btu/h) | 60,000(20,000~60,000) |
| COP | 3.7 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
