Cooper & Hunter
Model: CH-REL36-230VO
BTU
36,000
SEER2
19
Voltage
208-230V, 1Ph, 60Hz V, Ph, Hz
Refrigerant
R454B
Indoor: CH-PRO36MASTWM-230VI

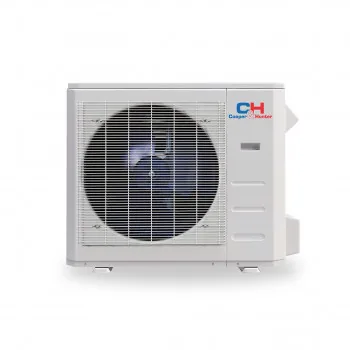

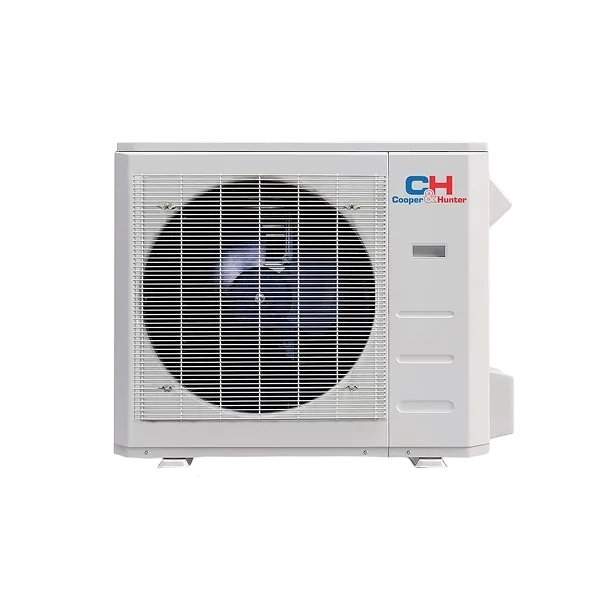

Cooper&Hunter's 36K BTU, 230V Regular Single-Zone Outdoor Unit offers a high-performance solution for maintaining comfortable indoor temperatures in large residential spaces. With its advanced inverter technology, the unit dynamically adjusts the compressor's output to match specific cooling and heating demands. This precise operation reduces energy consumption and ensures smooth, reliable performance, making it an economical choice for year-round use. The unit is equipped with R454B refrigerant, which is a more environmentally friendly option due to its lower Global Warming Potential (GWP) compared to traditional refrigerants. This reflects Cooper&Hunter's dedication to eco-conscious practices and sustainable technology. Constructed to withstand diverse weather conditions, the 36K BTU unit delivers robust and durable performance over time. Its SEER2 rating of up to 19.5 highlights its energy-efficient design, which helps reduce utility costs. Operating with minimal noise, this unit combines reliability, sustainability, and efficiency, ensuring consistent comfort in any season.
| Indoor Model | CH-PRO36MASTWM-230VI |
| Power supply | 208-230V, 1Ph, 60Hz V, Ph, Hz |
| Communication wiring | AWG 14-4 |
| Cooling Capacity | 36,000 (6,600~36,800) Btu/h |
| Input | 120 W |
| Rated current | 16.2 (3.7~21.1) A |
| EER/EER2 | 8.6 Btu/w |
| SEER/SEER2 | 19.0 Btu/w |
| Heating at 47 °F Capacity | 36,000(9,600~38,000) Btu/h |
| COP | 2.85 W/W |
| HSPF4/HSPF2-4 | 8.5 |
| HSPF5/HSPF2-5 | 6.6 |
| Indoor fan motor | 1 Qty |
| Indoor air flow (Turbo/Hi/Med/Lo) (No duct) | 882.9 / 635.7 / 506.2 / 382.6 CFM |
| Indoor noise level (Hi/Med/Lo) | 49/43.5/34.5 dB(A) |
| Dehumidification | 9.72 Pnt/H |
| Indoor unit Dimensions (WxDxH) | 47.13 x 11.02 x 14.61 inch |
| Packing (WxDxH) | 42.91 x 19.68 x 34.84 inch |
| Net/Gross weight | 150.35/160.27 inch |
| Drainage water pipe diameter | 5/8" inch |
| Refrigerant piping (Liquid side/Gas side) | 3/8"/5/8" inch |
| Design pressure | 550/340 PSIG |
| Controller | wire controller + remote controller available |
| Room temperature Cooling | 60~90 F |
| Heating | -13~75 F |
| Outdoor Model | CH-REL36-230VO |
| Min. circuit ampacity | 33 A |
| Max. fuse | 35 A |
| Compressor Model | KTF250D22UMT |
| Type | ROTARY |
| Brand | GMCC |
| Capacity | 27,620 Btu/h |
| Rated current (RLA) | 21.5 A |
| Refrigerant oil | VG74 22.7 oz |
| Outdoor fan motor Qty | 1 |
| RLA | 1.3 A |
| Speed | 880/700/500 r/min |
| Outdoor air flow (Max) | 2,235.3 CFM |
| Outdoor noise level (Max) | 63 dB(A) |
| Throttle type | EXV+Throttle valve |
| Outdoor unit Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 inch |
| Refrigerant Type | R454B |
| Precharge | 25 ft |
| Additional charge for 1/4 inch liquid pipe | / oz |
| Additional charge for 3/8 inch liquid pipe | 0.32 oz |
| Refrigerant piping Liquid side/Gas side | 3/8"/5/8" inch |
| Max. pipe length | 213.2 ft |
| Max. difference in level | 98.4 ft |
| Ambient temperature Cooling | -13 ~ 122 F |
