The Bravo Single-Zone Mini Split is a compact and efficient cooling solution for your home, available in 12K Btu/h capacities and available in 115 Volts. Designed for single-room use, it offers optimal comfort by adjusting cooling and heating settings based on room conditions. In addition, this unit includes SMART APP allowing you to control your unit through any smart device. With a 17 SEER2, the Bravo Single-Zone Mini Split combines efficiency, convenience, and quiet performance to keep your space comfortable year-round.

Voltage range (V)	165~265
Unit dimensions (WxDxH)	30.98x11.41x19.60
System type	Single-zone unit
SEER2 up to	17
Refrigerant type	R32
Refrigerant precharge (ft)	25
Refrigerant piping Liquid/Gas side (inch)	1/4"/3/8"
Power source	208-230V, 1Ph, 60Hz
Packing dimensions (WxDxH)	32.99x13.3x21.25
Outdoor noise level (dB)	55
Outdoor air flow (CFM)	1,955
Net/Gross weight (lb)	50.7/60.6
Minimum circuit ampacity (A)	11
Max. pipe length (ft)	50
Max. fuse (A)	15
Max height difference between Indoor and Outdoor unit	33
HSPF2-5	7.1
HSPF2-4	8.3
Heating capacity (Min/Max) (Btu/h)	11,500 (2,050~12,500)
EER2 up to	9.5
Dehumidification (Pnt/H)	1.3
COP	3.2
Cooling capacity (Min/Max) (BTU/h)	11,500 (2,050~12,000)
BTU Rated	12,000
Ambient temperature - Heating (F)	5~86
Ambient temperature - Cooling (F)	54~122
Additional Refrigerant Charge 3/8 liquid line	/
Additional Refrigerant Charge 1/4 liquid line	0.11

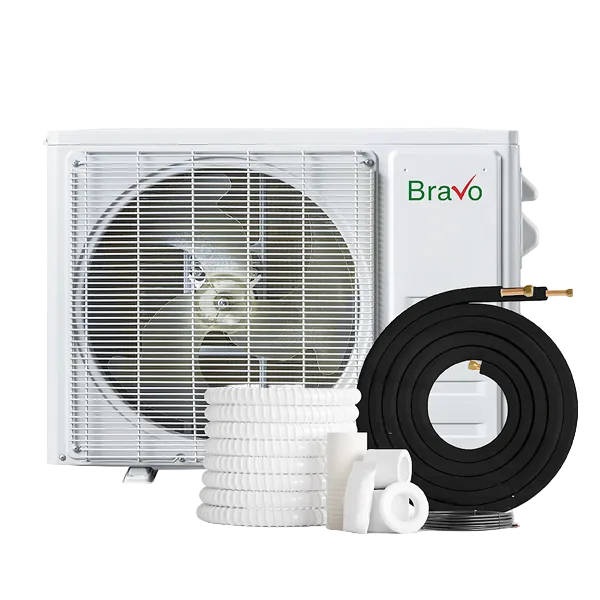

Bravo Outdoor Unit
