Bravo | Milano Series
Model: BRV-M42-230VO
BTU
42,000
SEER2
24
Voltage
208-230V/60Hz

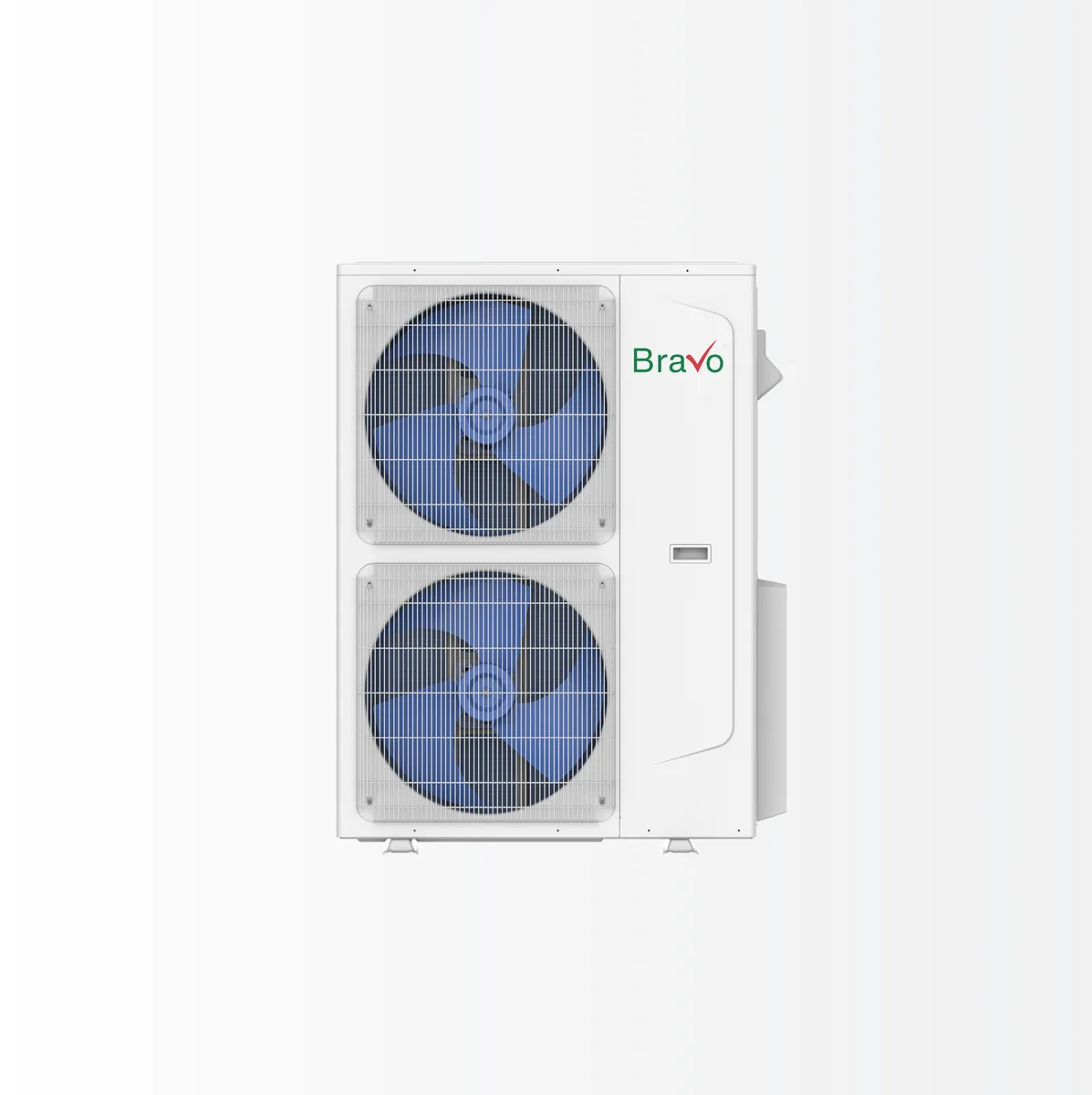

Bravo Milano Outdoor Unit by Bravo. Specifications: SEER2 24.0 | 208-230V/60Hz. Model: BRV-M42-230VO.
| Voltage range (V) | 165-264 |
| Unit dimensions (WxDxH) | 39.80x15.75x51.97 |
| System type | Multi-zone unit |
| SEER2 up to | 24/22/23 |
| Refrigerant type | R32 |
| Refrigerant precharge (ft) | Average 24.6 |
| Refrigerant piping Liquid/Gas side (inch) | 5x1/4"- 5x3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 42.52x16.93x56.69 |
| Outdoor noise level (dB) | 60 |
| Outdoor air flow (CFM) | 4,235 |
| Net/Gross weight (lb) | 205.0/224.9 |
| Minimum circuit ampacity (A) | 32 |
| Max. fuse (A) | 45 |
| Max height difference between Indoor and Outdoor unit | 49 |
| HSPF2-5 | 8/7.2/7.6 |
| HSPF2-4 | 10.5/10/10.25 |
| Heating capacity (Min/Max) (Btu/h) | 42,000 (8,450-46,000) |
| EER2 up to | 12.5/12.3/12.4 |
| Dehumidification (Pnt/H) | / |
| COP | 3.9/3.9/3.9 |
| Cooling capacity (Min/Max) (BTU/h) | 42,000 (8,350-46,000) |
| BTU Rated | 42,000 |
| Ambient temperature - Heating (F) | -22~75 |
| Ambient temperature - Cooling (F) | -13~125 |
| Additional Refrigerant Charge 3/8 liquid line | / |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |

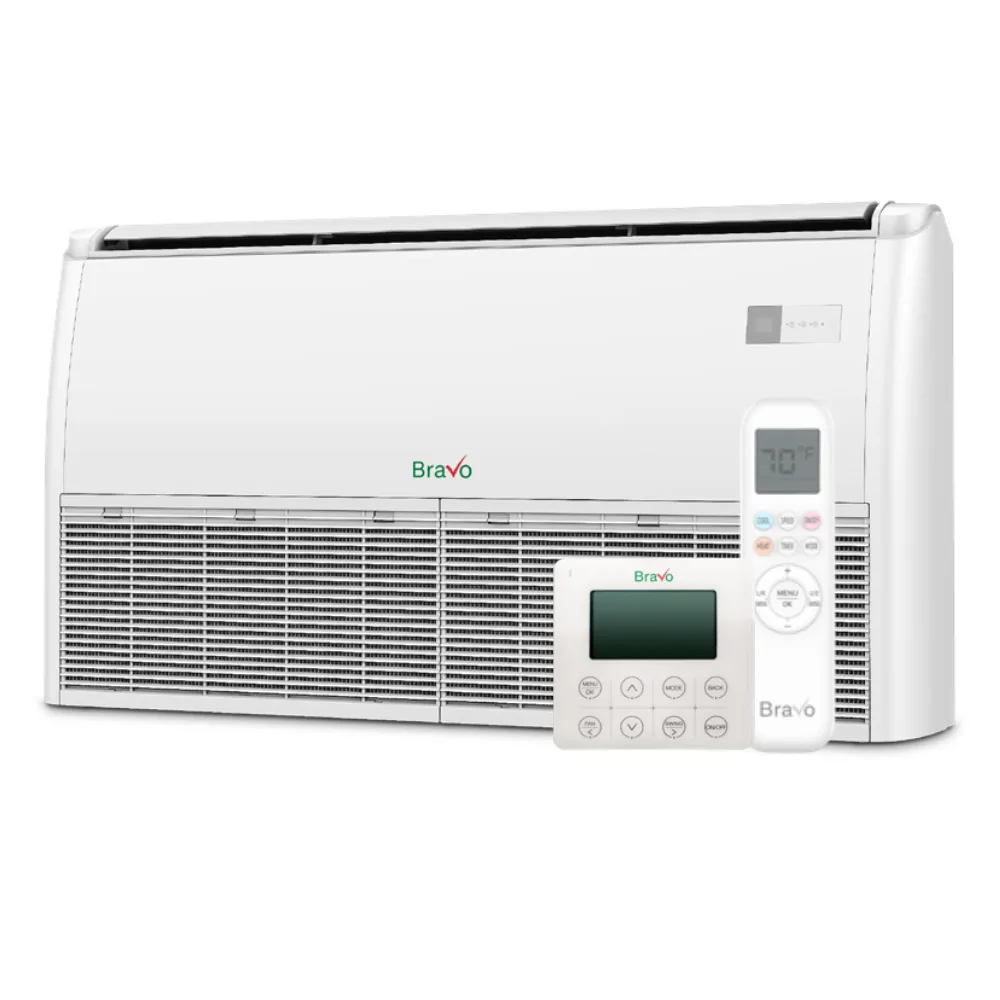

| brand name | BRAVO |
| series | Milano Universal Floor/Ceiling |
| model | BRV-M12FC-230VI |
| short description | Bravo Milano 12,000 BTU Universal Floor/Ceiling Indoor Unit |
| unit type | Ductless Mini-Split Indoor Unit |
| equipment type | Floor/Ceiling |
| tonnage | 1 |
| cooling capacity (BTU) | 12000 |
| heating capacity (BTU) | 12000 |
| voltage (V) | 208/230 |
| phase | 1 |
| cycle (Hz) | 60 |
| max fuse breaker (a) | 5 |
| indoor air flow (cfm) | 500 |
| indoor noise level (dba) | 39 |
| operating temperature range (°f) | 60.8–89.6 |
| net width (in) | 39.37 |
| net depth (in) | 27.17 |
| net height (in) | 9.25 |
| packing width (in) | 42.52 |
| packing depth (in) | 30.32 |
| packing height (in) | 12.80 |
| net weight (lbs) | 57.3 |
| gross weight (lbs) | 67.2 |
